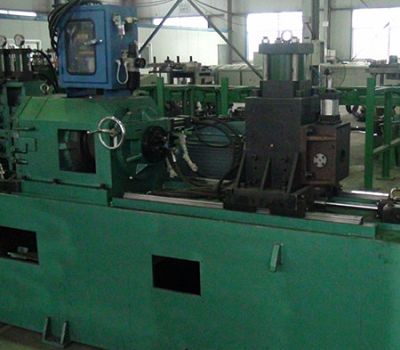

semi automatic steel wire peeling machine
Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as steel wire peeling machine, Series JY Bar Straightening Machine, Abrasive Belt Ginder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience, our machines have been exported to Russia Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.
steel wire peeling machine is one of our main products,The front clamping feeding, rear extracting system and the loading and unloading rollers all adopt variable frequency step-less speed regulation. The control system is functioned by semi-automatic buttons.
The main power supply is 380V 50Hz AC. The control power supply is 220V 50Hz AC, and the control system is weak current power supply (DC24V). The invert-er adopts SIEMENS G120 series, and the main control unit is SIEMENS brand. Circuit breaker, contact-or, relay, lights, buttons within the cabinet are all Schneider. The cable and wire between electric cabinet and the host system are all galvanized pipe.(see base location chart of equipment)
model | WXC160C | |
material requirement | diameter range (mm) | 55＜dia＜165 |
material length (mm) | ≥3500 | |
yield strength(Mpa) | ≤1100 | |
surface hardness | ≤HB320 | |
straightness (mm/m) | ≤1.5 | |
diameter tolerance | according to GB 702-2004 second group | |
roundness(mm) | ≤50% of diameter tolerance | |
surface roughness(Ra) | ≤25～50μm | |
finished product | diameter range(mm) | 55≤dia≤160 |
diameter cutting depth(mm) | 1.0~5.0 | |
diameter tolerance | ≤h10 | |
surface roughness (Ra) | ≤6.3μm | |
feeding speed (m/min) | 0.2~3.0 | |
cutting head rotation rate per minute(rpm) | 110~440 | |
main motor(kw） | 90/110 | |
total capacity（kw） | 120/140 | |
compressed air (prepared by user) | 0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine | |
