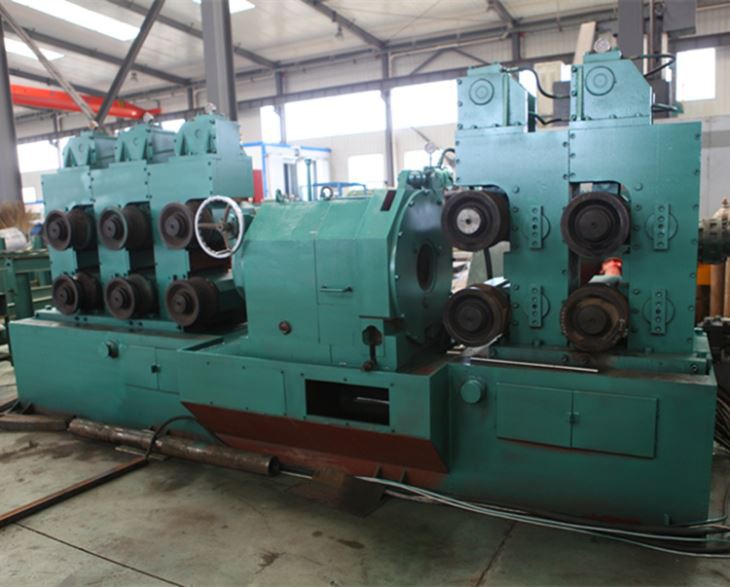

CNC metal wire peeling machine
Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as metal wire peeling machine, Series JY Bar Straightening Machine, Abrasive Belt Ginder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience, our machines have been exported to Russia Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.

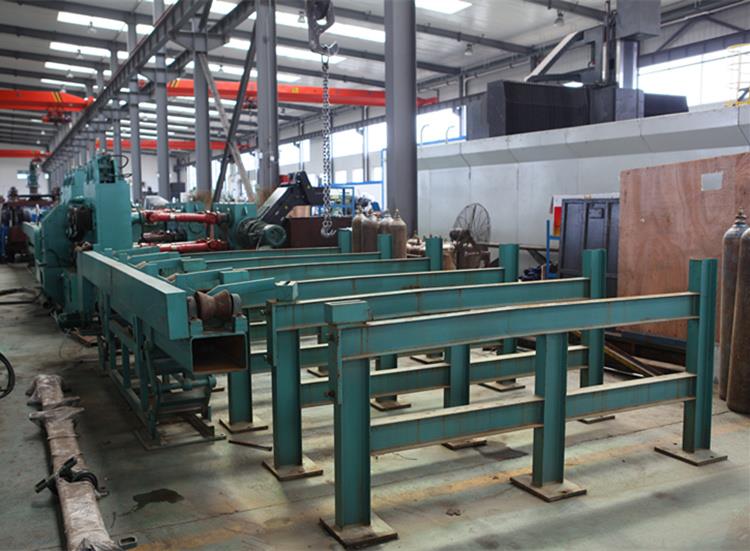

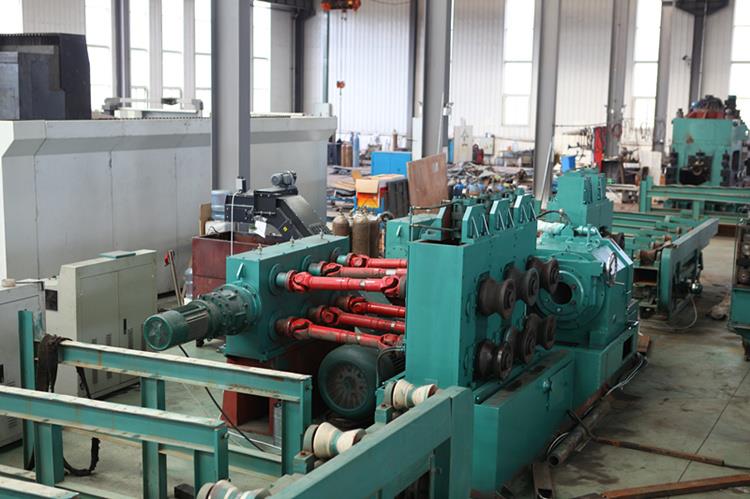

Metal wire peeling machine is one of our main products, which is mainly used to wipe off remove the rust on the surface of the black metal wire to make the black metal wire bright. There is production line from metal wire rod to metal bar. The wire to rod production line is to remove the surface decarburization layer and cracks to make metal wire bright and smooth through the metal wire peeling machine. Then cut the metal wire into a straight bar with high straightness through straightening and cutting and high precision two-roll straightening machine. Thus realizing the change of the black metal wire to the silver bar.
model | WXC130CA | |
material requirement | diameter range (mm) | 35＜dia＜135 |
material length (mm) | ≥2800 | |
yield strength(Mpa) | ≤1100 | |
surface hardness | ≤HB320 | |
straightness (mm/m) | ≤1.5 | |
diameter tolerance | according to GB 702-2004 second group | |
roundness(mm) | ≤50% of diameter tolerance | |
surface roughness(Ra) | ≤25～50μm | |
finished product | diameter range(mm) | 35≤dia≤130 |
diameter cutting depth(mm) | 1.0~5.0 | |
diameter tolerance | ≤h10 | |
surface roughness (Ra) | ≤6.3μm | |
feeding speed (m/min) | 0.2~4.0 | |
cutting head rotation rate per minute(rpm) | 110~660 | |
main motor(kw） | 90/110 | |
total capacity（kw） | 115/135 | |
compressed air (prepared by user) | 0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine | |
