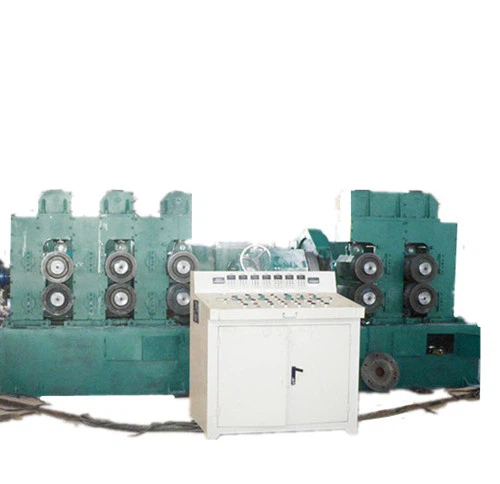

CNC bright wire peeler
CNC bright wire peeler
Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as bright wire peeler, Series JY Bar Straightening Machine, Abrasive Belt Ginder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience, our machines have been exported to Russia Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.
bright wire peeler is one of our main products, Our Series WXC Whirlwind center-less lathe and Series JY precise two-roller straightening machine are hi-tech equipment with independent intellectual property rights. They are researched and developed on the basis of absorbing domestic and foreign advanced technology,combined with domestic enterprises’ specific condition. Our technology has reached top level in China and the efficiency is several times higher than conventional process.Its reliable performance and lower price make it more suitable for domestic enterprises and export to many countries.
|
model |
WXC130S |
|
|
material requirement |
diameter range (mm) |
35＜dia＜135 |
|
material length (mm) |
≥2800 |
|
|
yield strength(Mpa) |
≤1100 |
|
|
surface hardness |
≤HB320 |
|
|
straightness (mm/m) |
≤1.5 |
|
|
diameter tolerance |
according to GB 702-2004 second group |
|
|
roundness(mm) |
≤50% of diameter tolerance |
|
|
surface roughness(Ra) |
≤25～50μm |
|
|
finished product |
diameter range(mm) |
35≤dia≤130 |
|
diameter cutting depth(mm) |
1.0~5.0 |
|
|
diameter tolerance |
≤h9 |
|
|
surface roughness (Ra) |
≤3.2μm |
|
|
feeding speed (m/min) |
0.3~6 |
|
|
cutting head rotation rate per minute(rpm) |
240~670 |
|
|
main motor(kw） |
110 |
|
|
total capacity（kw） |
140 |
|
|
compressed air (prepared by user) |
0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine |
|
