semi automatic bearing steel rod peeling machine
Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as bearing steel rod peeling machine, Series JY Bar Straightening Machine, Abrasive Belt Ginder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience, our machines have been exported to Russia Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.

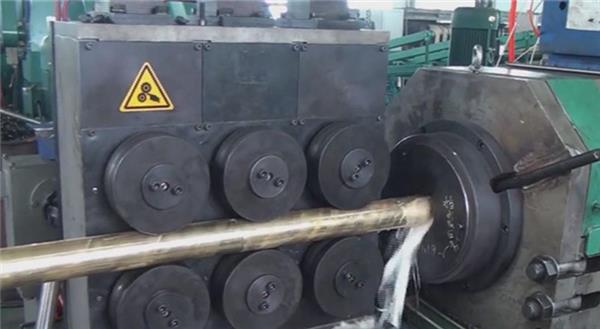

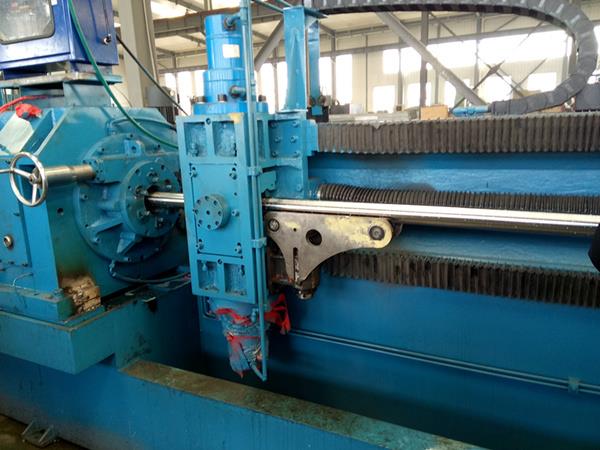

Bearing steel rod peeling machine is one of our main products, which is used to wipe off the the surface crack, oxide layer and decarburized layer of the bearing steel rod. The feed wheel has a wide range of adaptability, and it doesn't need to change wheels frequently, so the efficiency is high.
model | WXC130C | |
material requirement | diameter range (mm) | 35＜dia＜130 |
material length (mm) | ≥2800 | |
yield strength(Mpa) | ≤1100 | |
surface hardness | ≤HB320 | |
straightness (mm/m) | ≤1.5 | |
diameter tolerance | according to GB 702-2004 second group | |
roundness(mm) | ≤50% of diameter tolerance | |
surface roughness(Ra) | ≤25～50μm | |
finished product | diameter range(mm) | 35≤dia≤125 |
diameter cutting depth(mm) | 1.0~5.0 | |
diameter tolerance | ≤h10 | |
surface roughness (Ra) | ≤6.3μm | |
feeding speed (m/min) | 0.2~3.0 | |
cutting head rotation rate per minute(rpm) | 110~660 | |
main motor(kw） | 90 | |
total capacity（kw） | 115 | |
compressed air (prepared by user) | 0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine | |
