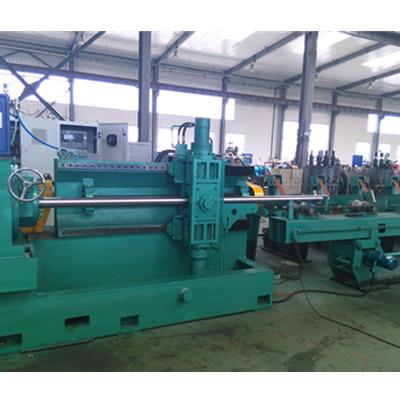

high precision alloy steel tube peeling machine
1.General Description:
Yantai Haige Machine Tools Co.,Ltd. was built in 1999,which specializes in producing steel finishing equipment,such as alloy steel tube peeling machine,Series JY Bar Straightening Machine,Abrasive Belt Ginder,Drawing Machine,Shot Blasting Machine,Centerless Grinding Machine,CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam,India, Pakistan,Iran,South Korea,North Korea,Taiwan and other countries and regions.
2.Specific Description:

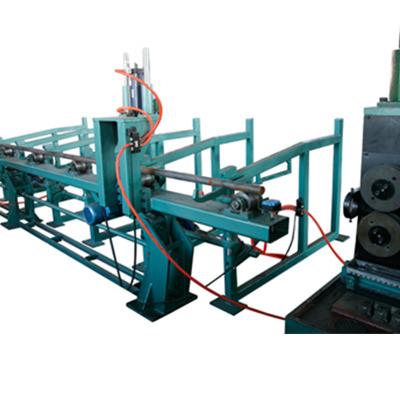

high precision alloy steel tube peeling machine is one of our main products,this machine could process different kinds of length range of the raw material,range from 2-12m.Its feeding device and discharging device are designed with automatic aligning structure,which leads to the high precision of the finished products.As well,their feeding wheel has large adaptation scope and high processing efficiency.There is no need of changing wheel frequently makes it more convenient.
Main Technical Parameters:
| model | WXC80S | |
material requirement | diameter range (mm) | 21＜dia＜83 |
material length (mm) | ≥2200 | |
yield strength(Mpa) | ≤1100 | |
surface hardness | ≤HB320 | |
straightness (mm/m) | ≤1.5 | |
diameter tolerance | according to GB 702-2004 second group | |
roundness(mm) | ≤50% of diameter tolerance | |
surface roughness(Ra) | ≤25～50μm | |
finished product | diameter range(mm) | 20≤dia≤80 |
diameter cutting depth(mm) | 0.5~3 | |
diameter tolerance | ≤h9 | |
surface roughness (Ra) | ≤3.2μm | |
feeding speed (m/min) | 1~12 | |
cutting head rotation rate per minute(rpm) | 430~1500 | |
main motor(kw） | 75/90 | |
total capacity（kw） | 95/110 | |
compressed air (prepared by user) | 0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine | |
