High Quality JY100Z Straightening Machine(HYDRAULIC PROTECTION TYPE)
High Quality JY100Z Straightening Machine(HYDRAULIC PROTECTION TYPE)

High Quality JY100Z Straightening Machine(HYDRAULIC PROTECTION TYPE)

The WXC series of center-less lathe and JY series of straightening machines are high -level new equipment with independent intellectual property rights on the basis of absorbing and digesting foreign advanced technology, making adventurous innovation, and research&development take into consideration of actual situation of domestic companies. Our technology reaches the domestic advanced level in reliability and quality while keeps a relatively lower price, with its efficiency more several times than the conventional process. Our products are suitable to process different kinds of metal material, for instance, black metal material such as structural steel, alloy steel, spring steel, bearing steel,tool steel, copper and copper alloy, aluminum and aluminum alloy, magnesium alloy, titanium and titanium alloy and other non-ferrous metal materials. WXC series of centerless lathe is high-efficient specialized lathe to make a rough or fine machining to the surface of bar material such as slender shaft and other bars. It is able to not only get rid of the imperfection on the bar surface , de-carburized layer, crack etc, but also to guarantee relatively high accuracy. It is especially suitable to process extra long bar and bar with large machining allowance.
Send Inquiry

JY



The products are suitable to process different kinds of metal material, for instance, ferrous material such as structural steel, alloy steel, spring steel, bearing steel,tool steel; non-ferrous metal like copper and copper alloy, aluminum and aluminum alloy,  magnesium alloy, titanium and titanium alloy and other metal materials.



The machine is mainly used for the precision straightening and calendering of the metal bar after peeling or grinding. In addition, the machine equipped with hydraulic protection device can also be used for the straightening of black bar and the straightening of precision forged round bar. Because its calendering and straightening is completed at one time, so the work efficiency is high.



-1

Model

JY100Z

Material

Straightening range(mm)

tensile strengthσb≤1000(Mpa)

Φ25≤d≤Φ100(L ≥3000)

Surface hardness

≤HB320±10

straightness(mm/m)

≤3

Diameter tolerance(mm)

≤h10

Roundness

≤0.04

Surface roughness(Ra)

≤3.2～6.3m

Finished product

straightness(mm/m)

≤0.40mm/m

Is the value after subtracting ellipticity from the measured value, leaving 50mm at both ends

Method

Of straightness measurement



Platform feeler gauge method



Diameter tolerance

≤h10

Surface Roughness(Ra)

≤0.8μm

20250507092427



Equipment Composition and Description

Equipment Composition

Host machine:                                                 1 nos

Loading rack(oron line mechanism ):             1 set

Aligning roller(optional):                                1 set

Loading groove:                                              1 set

Front-clamping pitch feeding:                         1 set

Rear-clamping extracting:                               1 set

Unloading groove:                                           1 set

Collecting box:                                                 1 set

Cooling and lubrication system:                       1 set

Electric system:                                                 1 set

hydraulic system:                                              1 set (for hydraulic protection straightening machine)



0

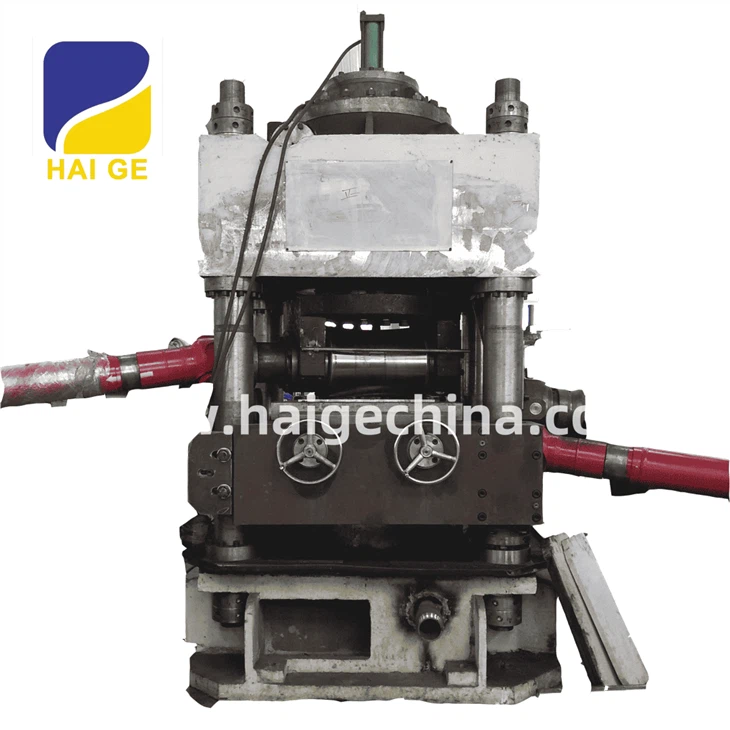

JY100Z Integral frame type rack straightening machine

JY100Z

JY100Z



1

1

2

3

4

5

6



5

8

6

6



Exhibition:

7



11

10
