Note:① The hardness of raw materials should be uniform,the difference of HB hardness values in the same bar material≤≤±10(difference of HRC hardness values≤±1).Raw material straightness shall meet the standards required by this agreement, otherwise automatic feeding cannot be realized. The head and tail must be chamfered before the raw material is straightened. When raw material is titanium alloy, it needs heating straightening.
Material with Tolerance over the limit and short material that over the limit should be manually feeding the material.
Rod material with problems of Big diameter, high strength, high hardness, poor straightness should be straightened with reduced processing speed.
Note:②Due to the difference in material properties, the finished products are about 280 mm, and the straightness of bright bar is about 0.60mm/m. the straightness of black bar is about 1.5mm/m.The diameter tolerance of bar material with a certain length at each end of bright bar varied obviously, and the tolerance variation at the end was about ±0.4mm. Finished the difference in size with the rest of the team: Φ15~30:≤0.03mm，Φ30~50:≤0.04mm,Φ50~60≤0.05mm.
3 Equipment Composition and Description
3.1 Equipment Composition
Host machine: 1 nos.
Loading rack: 1 set
Aligning roller(optional):1 set
Loading groove: 1 set
Front-clamping pitch feeding:1 set
Rear-clamping extracting: 1 set
Unloading groove: 1 set
Collecting box: 1 set
Cooling and lubrication system:1 set
Electric system:1 set
hydraulic system:1 set (for hydraulic protection straightening machine)
Product Description
Description:
1 Introduction
Series JY straightening machine is mainly used for precision straightening for the metal bar after peeling or grinding and pre-straightening for the metal bar. The machine adopted special curve between upper concave and the lower convex two straightening rolls to realize calendering and straightening at the same time,which greatly improved the working efficiency. Our technology reaches the domestic advanced level in reliability and quality while keeps a relatively lower price, with its efficiency more several times than the conventional process.
Our products are suitable to process different kinds of metal material, for instance, black metal material such as structural steel, alloy steel, spring steel, bearing steel,tool steel, copper and copper alloy, aluminum and aluminum alloy, magnesium alloy, titanium and titanium alloy and other non-ferrous metal materials.
Specification

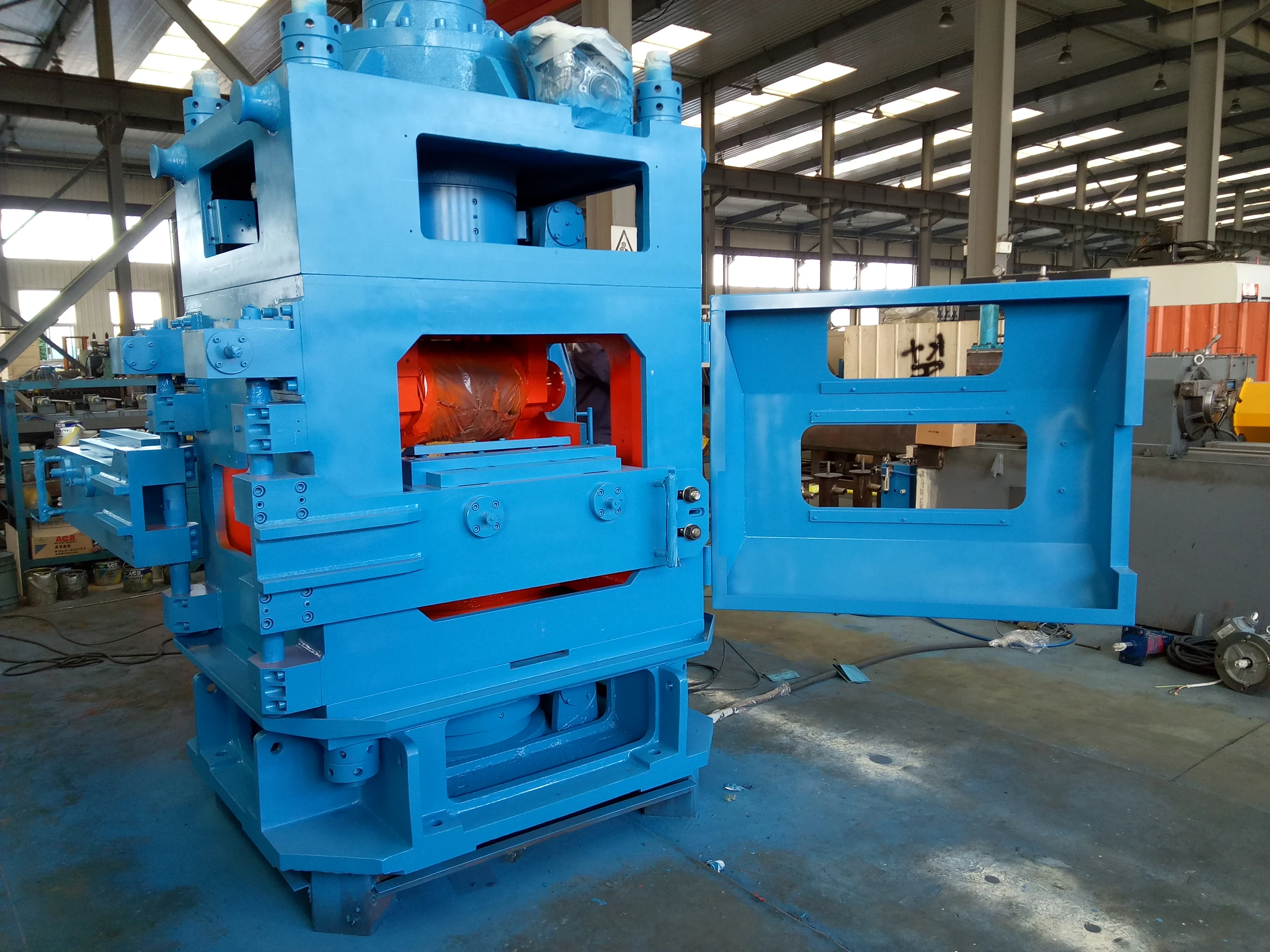

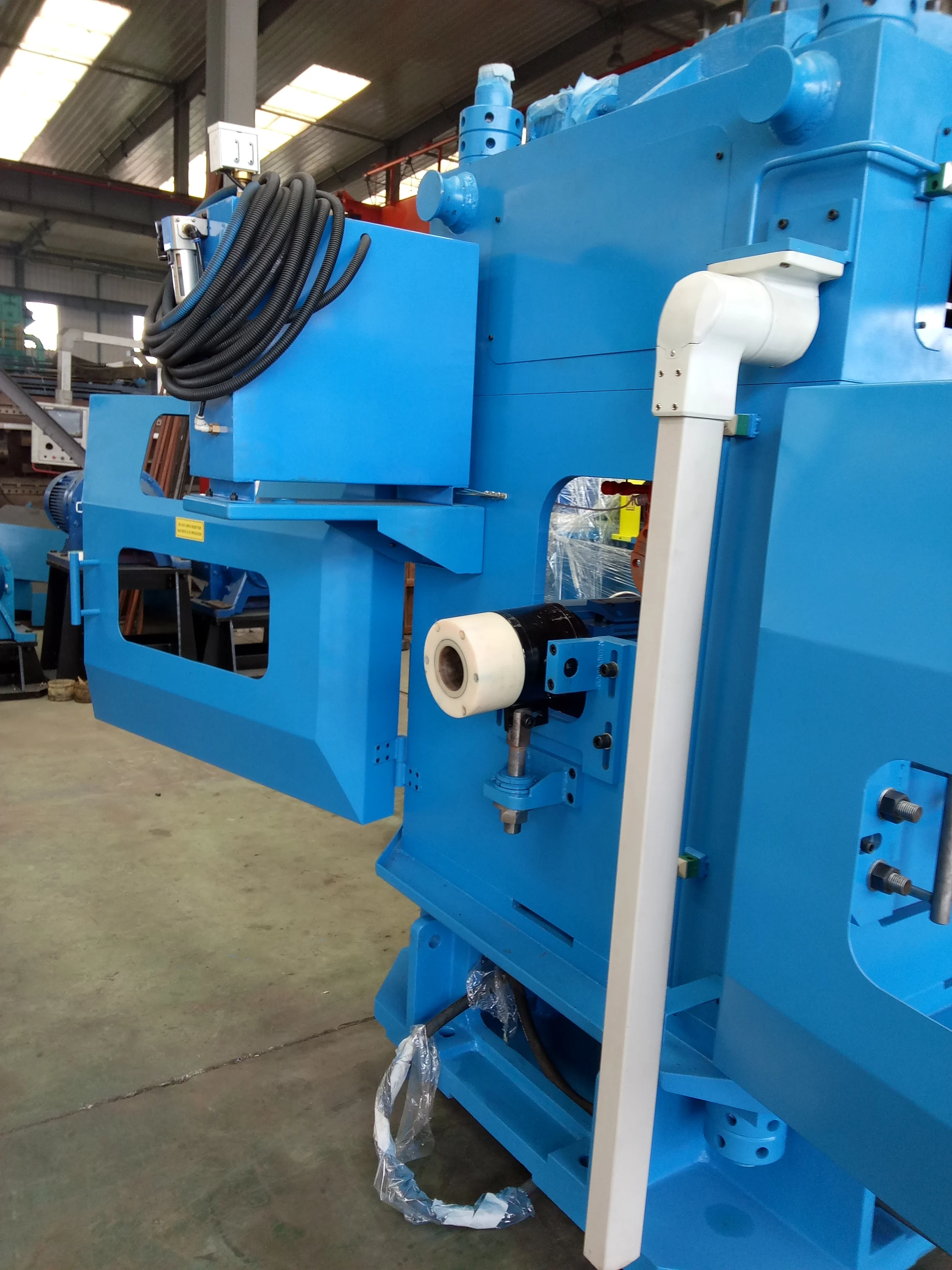

Product Display
Packing & Delivery
we have much experience in exporting transportation packaging.
Taking multi protection measures:
The first layer
wrapping with foam film and stretch film for the special components, in order to avoid moisture.
Second layer
inside of plywood box, adopting small square plywood block and strapping belt to fix.
Third layer
the machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut.
Fourth layer
in a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.
