stainless steel rod straightener
General Description:
Yantai Haige Machine Tools Co.,Ltd. was built in 1999, which specializes in producing steel finishing equipment, such as stainless steel rod straightener, Series JY Bar Straightening Machine, Abrasive Belt Ginder, Drawing Machine,Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.
Specific Description:

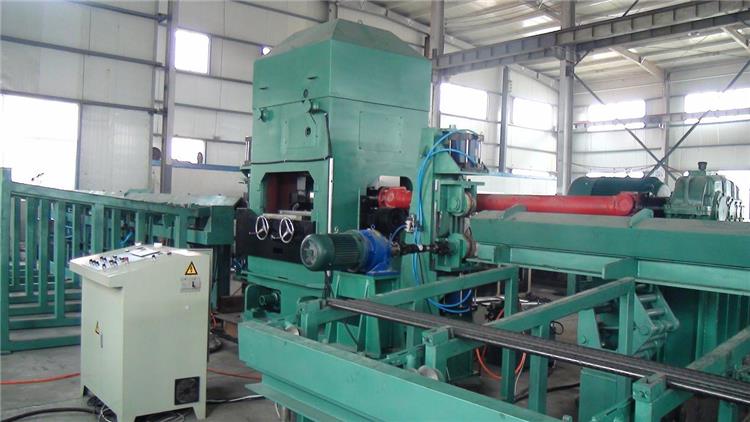

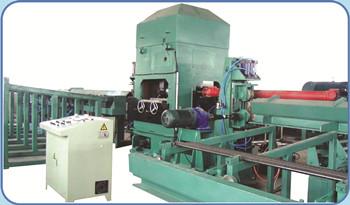

stainless steel rod straightener
Our straightening machine can be used to process various kinds of materials, for example stainless steel. The high -level new equipment have independent intellectual property rights on the basis of absorbing and digesting foreign advanced technology, making adventurous innovation, and take research&development into consideration of actual situation of domestic companies.
| JY60 | ||
material requirements | diameter range(mm) | 15＜dia＜60 |
length(mm) | ≥2000 | |
surface hardness | ≤HB320 | |
yeild strength(Mpa) | σb≤1000 | |
straightness(mm/m） | ≤3.0 | |
diameter tolerance | ≤h10 | |
roundness | ≤50% | |
surface roughness(Ra) | ≤6.3μm | |
after straightening | straightness（mm/m） | ≤0.3 |
surface roughness（Ra） | ≤0.8μm | |
diameter tolerance | ≤h9 | |
number of roller(pcs) | 2 | |
roller diameter(mm) | Φ260 | |
feeding speed(m/min) | 2.5~12 | |
main motor(kw) | 30kw X 2 | |
Lifting motor(kw) | 3 | |
total capacity(kw) | 70 | |
