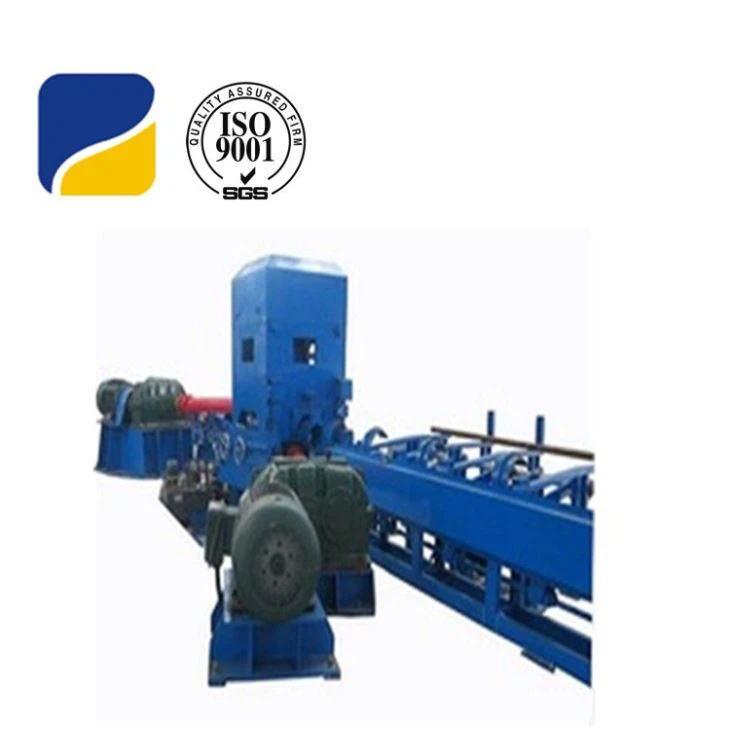

Industrial Stainless Steel Straightener Straightening Machine
General Description:
Yantai Haige Machine Tools Co.,Ltd. was built in 1999, which specializes in producing steel finishing equipment, such as titanium rod straightening machine, Series JY Bar Straightening Machine, Abrasive Belt Ginder, Drawing Machine,Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.
Specific Description:
Industrial Stainless Steel Straightener Straightening Machine
Our machine can process many different kinds of metal material, for instance, spring steel, copper and copper alloy, titanium and titanium alloy, aluminum and aluminum alloy, carbon steel, alloy steel, magnesium alloy, and other non-ferrous metal materials.
Specification | JY60(zhenzhneg) | |||
Raw
Material
| Diameter Range（mm） (excluding drawing material) | Tensile Strength σb≤450（M pa） | Φ18≤d≤Φ60（L ≥2000） | |
Tensile Strength σb≤1000（M pa） | Φ18≤d≤Φ58（L ≥2000） | |||
Surface Hardness | ≤HB380（≤HRC42） | |||
Straightness(mm/m） | ≤3 | |||
Diameter Tolerance | Bright Steel ≤IT10 | |||
Circular Degree | d≤50 | ≤50% of diameter tolerance | ||
50<d≤60 | ≤65% of diameter tolerance | |||
Diameter Range（mm） (excluding drawing material) | ≤3.2mm～6.3mm | |||
Finished
Products
| Straightness（mm/m） | Bright Steel≤0.30 | ||
Diameter Tolerance | Bright Steel≤IT10 | |||
Surface Roughness（Ra） | Bright Steel≤0.8μm | |||
Roll Qty (Pcs) | 2 | |||
Roll Diameter(mm) | Φ260 | |||
Straightening Feeding Speed(m/min) (infinitely adjustable-speed) | 2.5~12 | |||
Main Machine Motor Power (KW) | 30 X 2 | |||
Lifting Motor Power(KW) | 3.0 | |||
Main Machine Outline Dimensions | 6.6mX2.3mX1.7m | |||
Weight | 7.8 T | |||
Total Capacity | 70 | |||
Compressed Air Source（user prepare by themselves） | 0.5~0.8MPa、1.8m3/min、twp-stage oil-water separator | |||
