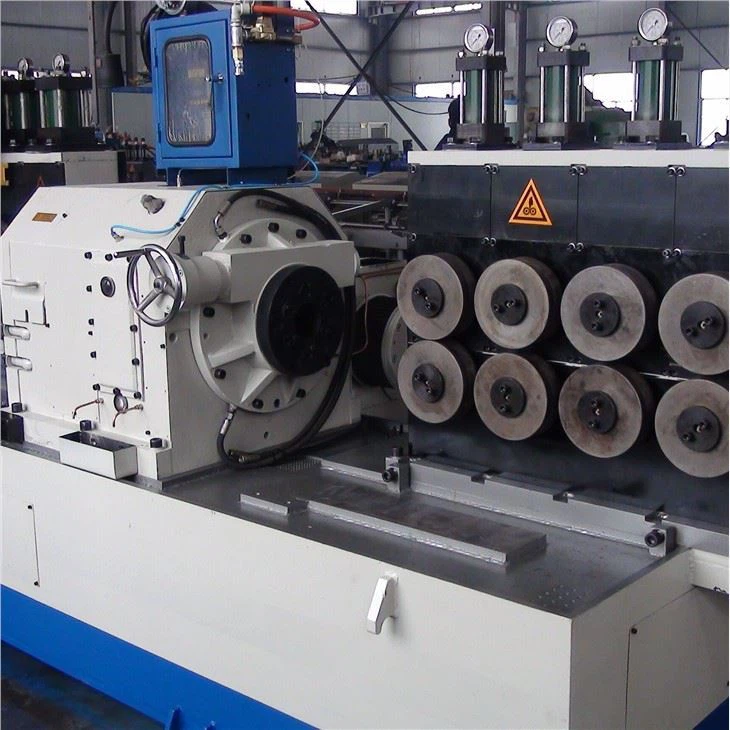

Model | WXC80C | |
Material | Diameter Range（mm） | Φ21~Φ83X2200~6000 |
Yield Strength σb（Mpa） | ≤1100 | |
Surface Hardness | ≤HB320 | |
Original Curvature （mm/m） | ≤1 .5① | |
Diameter Tolerance | According to GB 702-88, 2 group | |
Roundness | ≤50% of the diameter tolerance | |
Surface Roughness（Ra） | ≤25～50mm | |
After Peeling | Diameter Range（mm） | Φ20~Φ80 |
Diameter Cutting Depth（mm） | 0.35~1.50 | |
Diameter Tolerance | ≤IT10(Standard tolerance grade) | |
Surface Hardness（Ra） | ≤3.2-6.3μm | |
Curvature（mm/m） | The same as material | |
Roundness | ≤0.03 | |
Feeding Speed（Stepless speed regulation m/min） | 1.0~8.0（high strength, high hardness, feeding speed must be reduced to treat large diameter material） | |
Cutting Head Rotational Speed（rpm）（r/min） | 430~1200 | |
Main Motor Power（kW） | 55(4 poles) | |
Feeding Motor Power（kW） | 5.5 X2(4 poles) | |
Size（m）（for Reference） | Main Machine 3.0X3.5X2.4 | |
Weight（t）（with racks for Reference） | 8.5 host | |
Total Capacity（kW） | 75 | |
Compressed Air Source（Self-prepared） | 0.5~0.8MPa、1.8m3/min、0.8 m3 and above air tank、 2 grade oil&water separator | |
