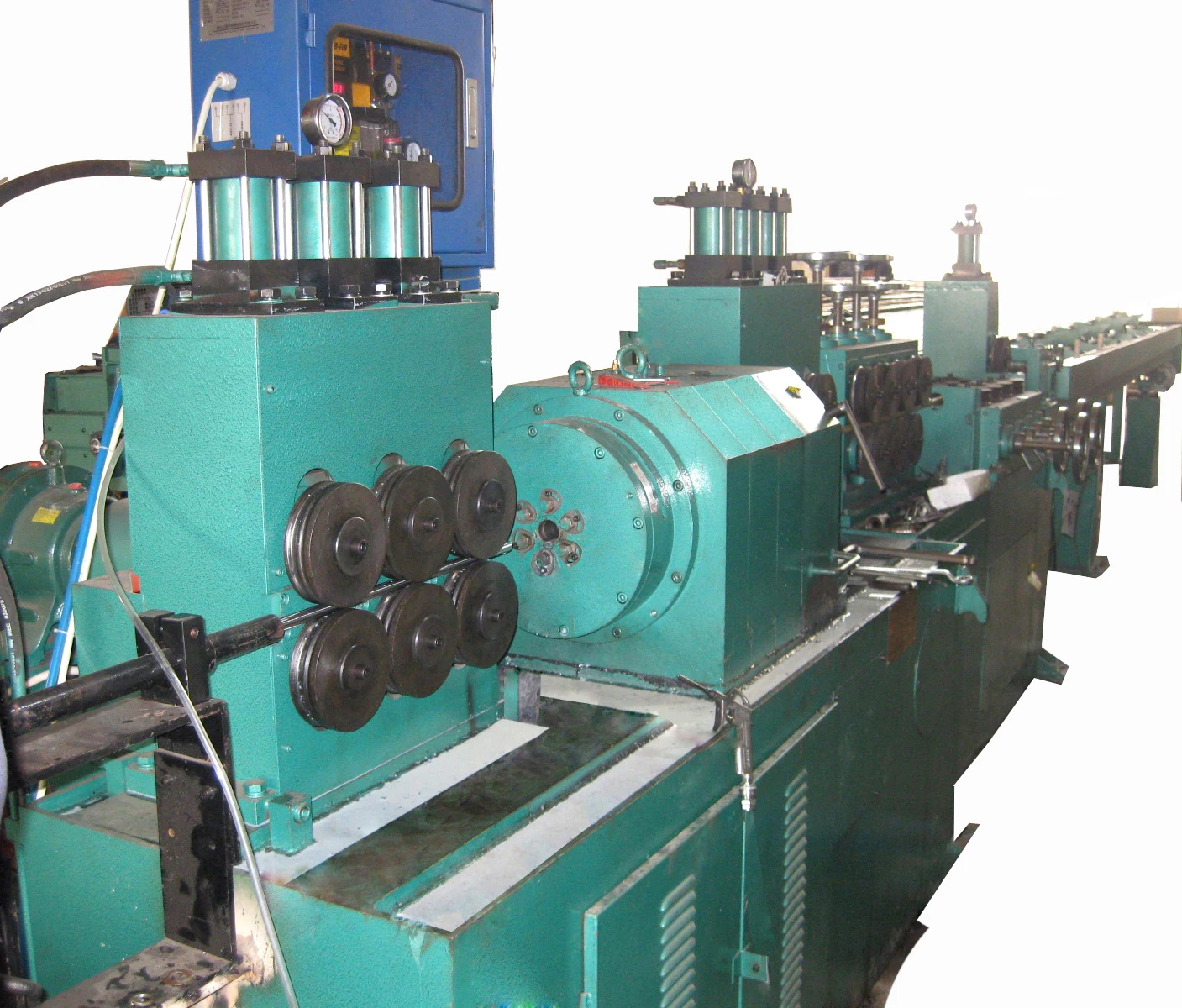

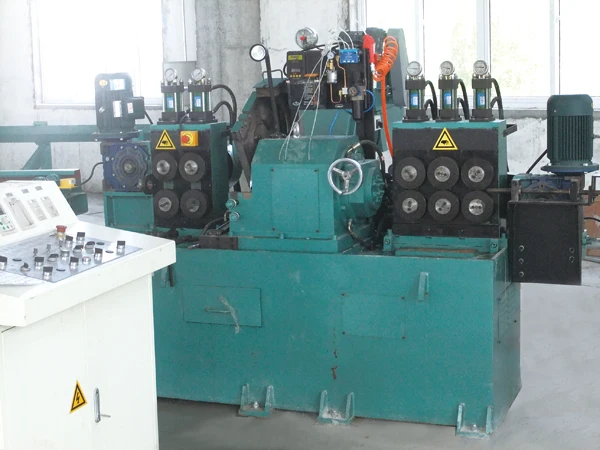

HAIGE WXC30c 7.5-31mm Round Bar Peeling Lathe Machine
HAIGE WXC30c 7.5-31mm Round Bar Peeling Lathe Machine
HAIGE WXC30c 7.5-31mm Round Bar Peeling Lathe Machine
HAIGE WXC30c 7.5-31mm Round Bar Peeling Lathe Machine
HAIGE WXC30c 7.5-31mm Round Bar Peeling Lathe Machine
HAIGE WXC30c 7.5-31mm Round Bar Peeling Lathe Machine
1/
HAIGE WXC30c 7.5-31mm Round Bar Peeling Lathe Machine
Quick Details
Place of Origin:
Shandong, China
Brand Name:
haige
Condition:
New
Machine Type:
Bar peeling machine
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
PLC, Bearing, Gearbox, Motor, Gear
Warranty:
1 Year, 12months
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points:
Easy to Operate
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Applicable Industries:
Manufacturing Plant, Other
Showroom Location:
None
After sales service:
engineers are available to supervise on site
Color:
customized
Automatic Grade:
Semi-automatic
Standard:
ISO9001
Pesonnel training:
provided
Yield Strength:
≤1100
Surface Hardness:
≤HB320
Original Curvature:
≤1 .5
Diameter Cutting Depth:
0.20~1.0
Send Inquiry
Product Description
Description:
Quality: Our company regards quality as life. We have already passed ISO9001 certification, and strictly implement the ISO9001 international quality management system. We keep improving quality in order to let customers buy with comfort and use with satisfaction.
Our company can also make specified equipment according to customers’ requirement.
Our service:
1. Free quality guarantee period for 12 months, except for wearing parts.
2. Free provide long-term technical support
3. Free train buyer’s operator in seller’s factory
4. Fast response service within 24 hours
5.Our engineers can offer overseas service, including guiding installation, commissioning, training, etc, if our customer needs
Specification
Model
WXC30C
Material
Diameter Range（mm）
Φ7.5~Φ31X1400~unlimited
Yield Strength σb（Mpa）
≤1100
Surface Hardness
≤HB320
Original Curvature FEFEFEFEFCCCCCCIFJEICurvature（mm/m）
≤1 .5①
Diameter Tolerance
According to GB 702-88, 2 group
Roundness
≤50% of the diameter tolerance
Surface Roughness（Ra）
≤25～50mm
After Peeling
Diameter Range（mm）
Φ7~Φ30
Diameter Cutting Depth（mm）
0.20~1.0
Diameter Tolerance
≤IT10
Surface Hardness（Ra）
≤6.3μm
Curvature（mm/m）
The same as material
Roundness
≤0.03
Feeding Speed（Stepless speed regulation m/min）
1.0~8.0（high strength, high hardness, feeding
speed must be reduced to treat large diameter material）
Cutting Head Rotational Speed（rpm）（r/min）
450~1250
Main Motor Power（kW）
30(4 pole)
Feeding Motor Power（kW）
4*2(4 pole)
Size（m）（for Reference）
Main Machine 2.0X2.2X1.5 whole
machine (with racks ):12.0X2.2X1.5
Weight（t）（with racks for Reference）
Main machine: 3.3 Whole machine :4.5
Total Capacity（kW）
45
Compressed Air Source（Self-prepared）
0.5~0.8MPa、1.8m3/min、0.8 m3 and above air tank、 2 grade oil&water separator
