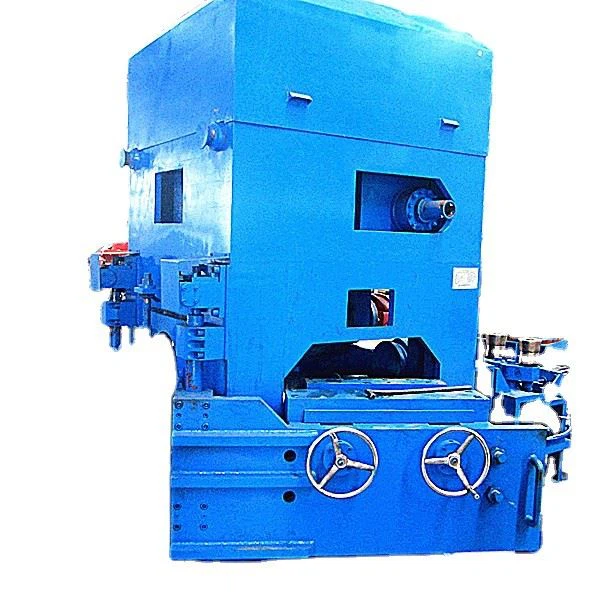

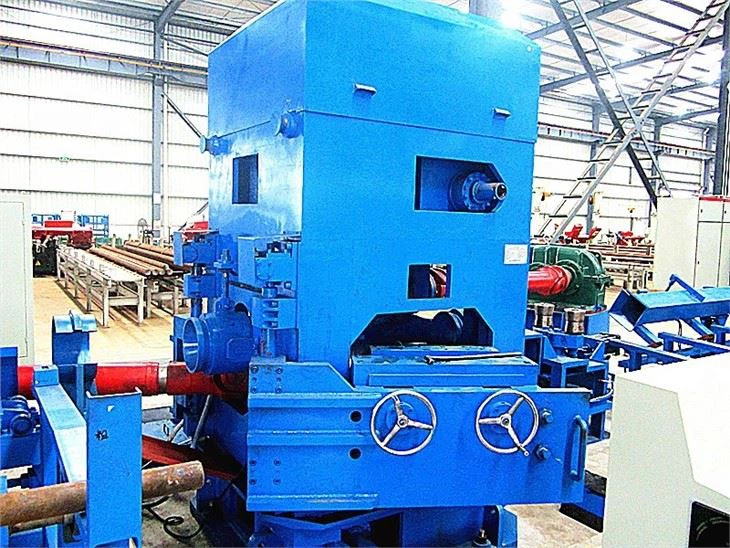

High Precision JY120AY Straightening Machine
High Precision JY120AY Straightening Machine

High Precision JY120AY Straightening Machine

Quick Details Place of Origin: Shandong, China Type: bar straightening machine, Hydraulic protection type Condition: New Use: Bar Video outgoing-inspection: Provided Machinery Test Report: Provided Marketing Type: Hot Product 2021 Warranty of core components: 1 Year Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear Brand Name: haige Voltage: 220V Warranty: 1 Year, 12months Key Selling Points: Easy to Operate Applicable Industries: Manufacturing Plant Showroom Location: None Weight (KG): 40 After sales service: engineers are available to supervise on site Color: customized Standard: ISO9001 Pesonnel training: provided After-sales Service Provided: Online support After Warranty Service: Online support
Send Inquiry
Product Description
Equipment introduction:
JY series straightening calendering machine produced by our company are high-quality and new-designed equipment with independent
intellectual property rights developed on the basis of absorbing foreign advanced technology, combining with the innovating
constantly. The technology reaches the domestic advanced level, the efficiency surpasses the conventional process several times.
Reliable performance, high quality and low price.
The machines are suitable for all kinds of metal material,for instance,ferrous material such as structural steel,alloy steel, spring steel, bearing steel, tool steel; no-ferrous material such as copper, copper alloy, aluminum, aluminum alloy, magnesium alloy,titanium and titanium alloy etc.
The machine is mainly used for the precision straightening and calendering of the metal bar after peeling or grinding. In addition, some model which was equipped with hydraulic protection,can also be used for the straightening of black bar and the straightening of precision forged round bar. The work efficiency of our machine is high due to calendering and straightening is completed at same time.

Specification
Model
JY120AY
Material
Straightening range(mm)
tensile strength σb600(Mpa)
Φ20≤d≤Φ110(2000≤L ≤8000)


Surface hardness
≤HB320
straightness(mm/m)
≤5‰
Diameter tolerance(mm/m)
≤IT10
roundness
 ≤0.4mm
Surface roughness(Ra)
3.2μm--6.3μm
Finished product
straightness(mm/m)
Bright bar: ≤1mm/m
Method of straightness measurement

Platform Feeler Method
Diameter tolerance
≤IT10


No. Of rollers
2
Diameter of roller(mm)
Φ406
Feeding Speed(Stepless Speed Change)
3-12(m/min)
Main Motor Power(kW)
 90*2
Lifting Motor Power(kW)
3kw ac 1pcs






Total capacity(kW)(for reference)
200(for reference)
Compressed air source(Self-prepared )
0.5~0.8MPa、1.8m3/min、Two stage oil water separator is included

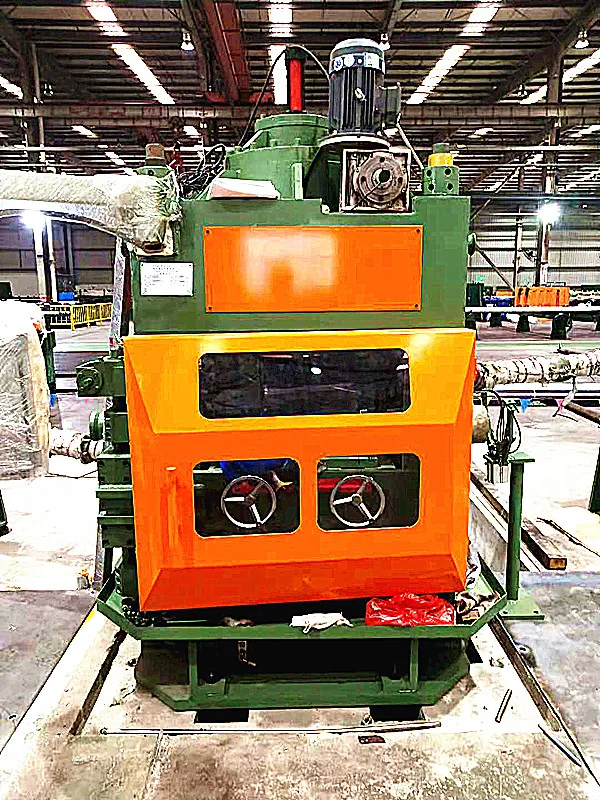

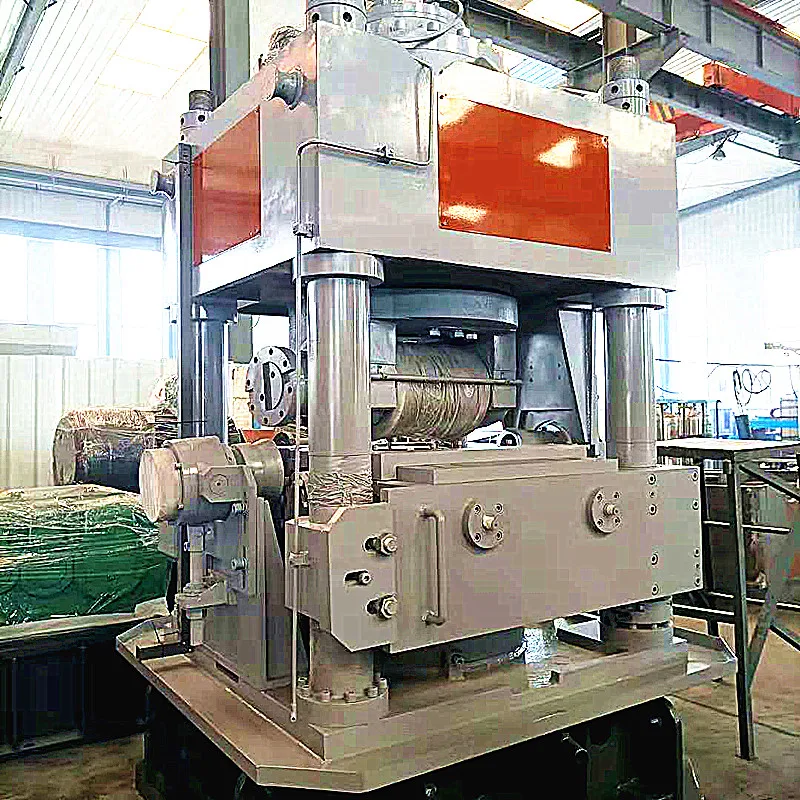

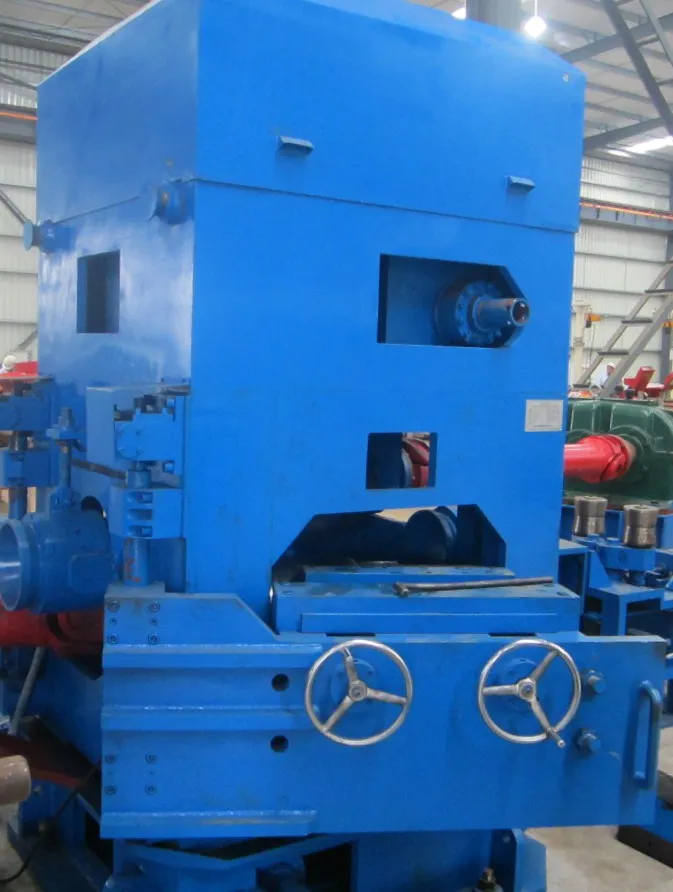

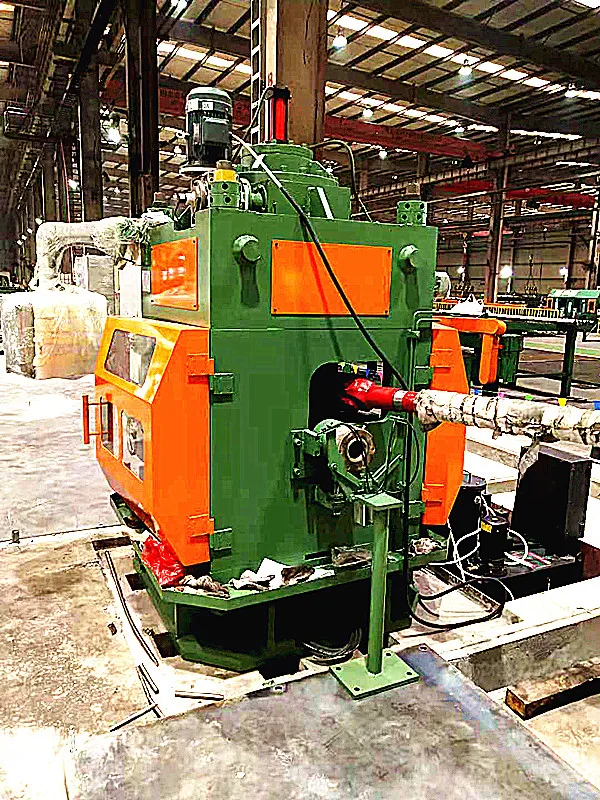

Product Display
