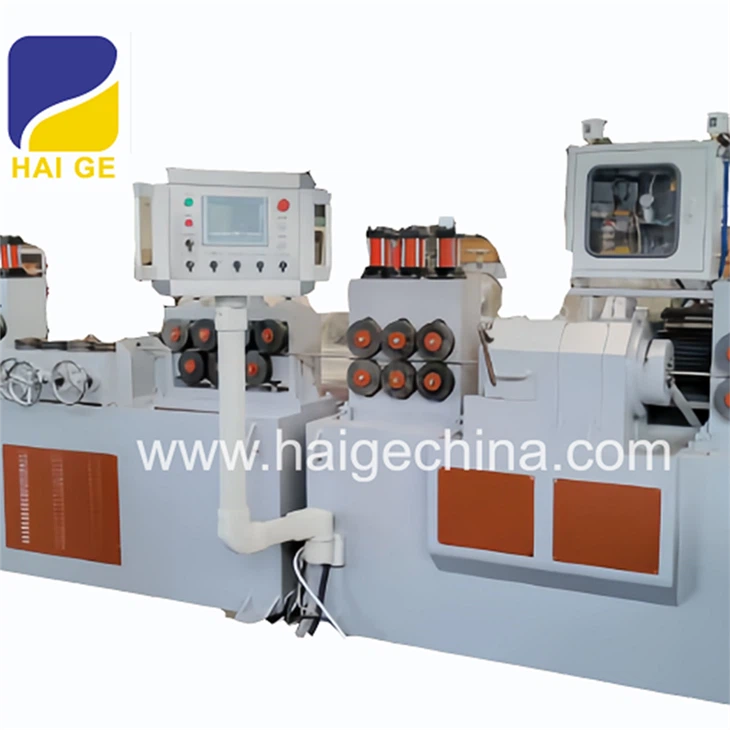

High ProductivityWXC80S CNC TYPE Centerless Lathe

The WXC series of center-less lathe and JY series of straightening machines are high -level new equipment with independent intellectual property rights on the basis of absorbing and digesting foreign advanced technology, making adventurous innovation, and research&development take into consideration of actual situation of domestic companies. Our technology reaches the domestic advanced level in reliability and quality while keeps a relatively lower price, with its efficiency more several times than the conventional process. Our products are suitable to process different kinds of metal material, for instance, black metal material such as structural steel, alloy steel, spring steel, bearing steel,tool steel, copper and copper alloy, aluminum and aluminum alloy, magnesium alloy, titanium and titanium alloy and other non-ferrous metal materials. WXC series of centerless lathe is high-efficient specialized lathe to make a rough or fine machining to the surface of bar material such as slender shaft and other bars. It is able to not only get rid of the imperfection on the bar surface , de-carburized layer, crack etc, but also to guarantee relatively high accuracy. It is especially suitable to process extra long bar and bar with large machining allowance.

Send Inquiry

product-974-382

Model		WXC40S
Material	Diameter Range(mm)	Φ8.5~Φ40X2500~8000
	Yield Strength σ_b(Mpa)	≤1000
	Surface Hardness	≤HB320
	Original Curvature Curvature(mm/m)	≤1.5^①
	Diameter Tolerance	According to GB 702-88,Grade 2
	Roundness	≤50% of the diameter tolerance
	Surface Roughness(Ra)	≤25～50mm
After Peeling	Diameter Range(mm)	Φ8~Φ39
	unilateral Cutting Depth(mm)	0.2~1
	Diameter Tolerance	≤h9-h10(standard tolerance grades)
	Surface roughness(Ra)	≤6.3μm
	Roundness	≤0.03
Feeding rate(continuous variable transmission m/min)		1.0-12(The processing rate needs to be slow down when it works with Continuous chip, high strength, high hardness, deeper turning, large and small diameter material.)
Cutting Head Rotational Speed(rpm)(r/min)		450-1500
Main Motor Power(kW)		45
Feeding Motor Power(kW)		4(4-pole)(feeding in)+0.55(4-pole)(pull out)
Size(m)(for Reference)		Main machine2.5X2.2X1.5 with auxiliary machine :12.5X2.2X1.5
Weight(t)(for Reference)		Main machine with auxiliary machine:8
Total power(kW)		65
Compressed Air Source(Self-prepared)		0.5~0.8MPa,1.8m³/min,0.8 m³ and above air tank,2-stage oil&water separator and Compressed air refrigerated dryer

Noted: ①The smaller the bending degree of raw material, the better finished product's precision, and the longer machine service life and higher efficiency. If straightness of raw material is too large, it has to be straightened before peeling, or else the precision, machine service life and working efficiency will be effected. When the straightness of raw materials is large, manual assistance is needed for feeding.If the ends of raw material has serious trimming, flat head and bending, it has to be cut off before peeling.The bending degree of finished product will be big when the diameter is less than 20.

Equipment Composition

Main Machine 1nos

Cutting Fluid Circulation Cooling System 1set

Chain plate style Chip Conveyor 1set

Hydraulic System 1set

Electrical System 1set

Feeding(loading) Rack, Feeding Roller device 1set

Unloading Roller, Collecting device 1set
