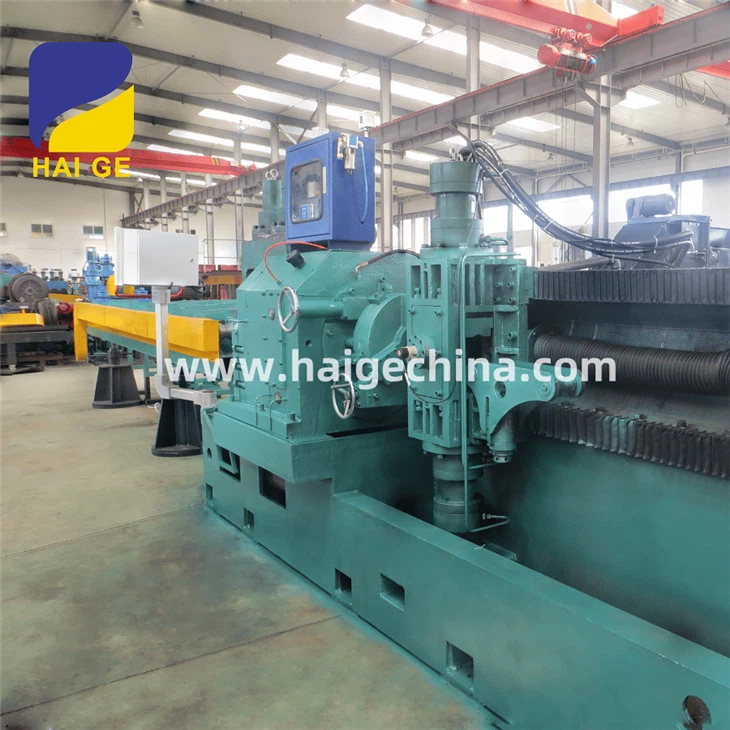

Specification |
WXC60C(semi-auto) |
|
|
RAW |
Diameter Range(mm) |
Φ14~Φ60 |
|
Raw Material Length(mm) |
≥2200 |
|
|
Tensile Strength (Mpa) |
≤1100 |
|
|
Surface Hardness |
≤HB320 |
|
|
Curvature(mm/m) |
≤1.50① |
|
|
Diameter Tolerance |
According to GB 702-2004 second group |
|
|
Roundness(mm) |
≤50% of the diameter tolerance |
|
|
Surface Roughness(Ra) |
≤25~50μm |
|
|
FINISHED |
Diameter Range |
Φ13.5~Φ59 |
|
Unilateral Cutting Depth (mm) |
0.5~1.0 |
|
|
Diameter Tolerance |
≤IT10 (standard tolerance grade) |
|
|
Surface Roughness(Ra) |
≤6.3μm |
|
|
Roundness(mm) |
≤0.03 |
|
|
Feeding Cutting Speed(m/min) |
1.0-8.0(for continuous chips and high strength and hardness should reduce the speed) |
|
|
Cutter Head Rotational Speed(rpm) |
440~1300 |
|
|
Main Machine Motor Power(KW) |
45 |
|
|
Auxiliary Machine Motor Power(KW) |
4.0X 2(Four Poles) |
|
|
Main Machine Outline Dimensions (Length*Width*Height) m |
3.0m X 2.5m X 2.0m |
|
|
Full Set Machine Outline Dimensions (including auxiliary machine) (Length*Width*Height) m |
13.0X2.5X2.4 |
|
|
Main Machine Weight |
5.0(8.0) |
|
|
Total Capacity(KW) |
75 |
|
|
Compressed Air Source (user prepare by themselves) |
0.5-0.8Mpa,1.8m3/min,0.8m3 gasholder,two-stage oil-water separator and compressed air freezing drier. |
|
Scope of Supply
|
No. |
Name |
Quantity |
Configuration Options |
|
1 |
Main Motor |
1 |
Standard configuration |
|
2 |
Loading rack |
1 |
Standard configuration according to 6 meter bar |
|
3 |
Loading roller |
1 |
Standard configuration according to 6 meter bar |
|
4 |
Unloading roller |
1 |
Standard configuration according to 6 meter bar |
|
5 |
Collecting groove |
1 |
Standard configuration according to 6 meter bar |
|
6 |
Chip conveyor |
1 |
Standard configuration |
|
7 |
Hydraulic station |
1 |
Standard configuration |
|
8 |
Electric cabinet |
1 |
Standard configuration |
|
9 |
Water pump |
1 |
Standard configuration |
Acceptance procedure and content
Pre-acceptance
The pre-acceptance takes place in the factory, when the seller informs the buyer to get to factory for the acceptance 15 days before the machines depart the factory.
B) Accepting in the factory
When machines are delivered to the required place of the buyer, the buyer launches the inspection according to the package list.
C) Installation acceptance
The buyer installs the machine according to basic location map and equipment drawing, and the seller sends technicians for installation instructions on spot. The seller is responsible for the initial operation and technical training. The two sides meet for the acceptance of the machine in accordance with the technical agreement and contract and related technical documents etc.
D) Acceptance details
The appearance of equipment, the accuracy of the machine tool, the load test index, the actual usage situation and the content of relevant paper regulation.
After-sell service
A) The seller should give immediate response once informed that the machine gets problems and arrives on site for maintenance within 72 hours.
B) When it is impossible to arrive on site, the seller should give on time technical support.
C) The seller should guarantees the timely supply of spare parts.
Technical Data
Instructions and Operating Procedures of Equipment(Mechanical, hydraulic, electrical, oil and gas lubrication)
Certificate
Packing list
List of wearing parts
Basic location map, and installation of cable specifications detail table
Electric principle diagram
