he WXC series of center-less lathe and JY series of straightening machines are high -level new equipment with independent intellectual property rights on the basis of absorbing and digesting foreign advanced technology, making adventurous innovation, and research&development take into consideration of actual situation of domestic companies. Our technology reaches the domestic advanced level in reliability and quality while keeps a relatively lower price, with its efficiency more several times than the conventional process.
Our products are suitable to process different kinds of metal material, for instance, black metal material such as structural steel, alloy steel, spring steel, bearing steel,tool steel, copper and copper alloy, aluminum and aluminum alloy, magnesium alloy, titanium and titanium alloy and other non-ferrous metal materials.
Properties of the machine

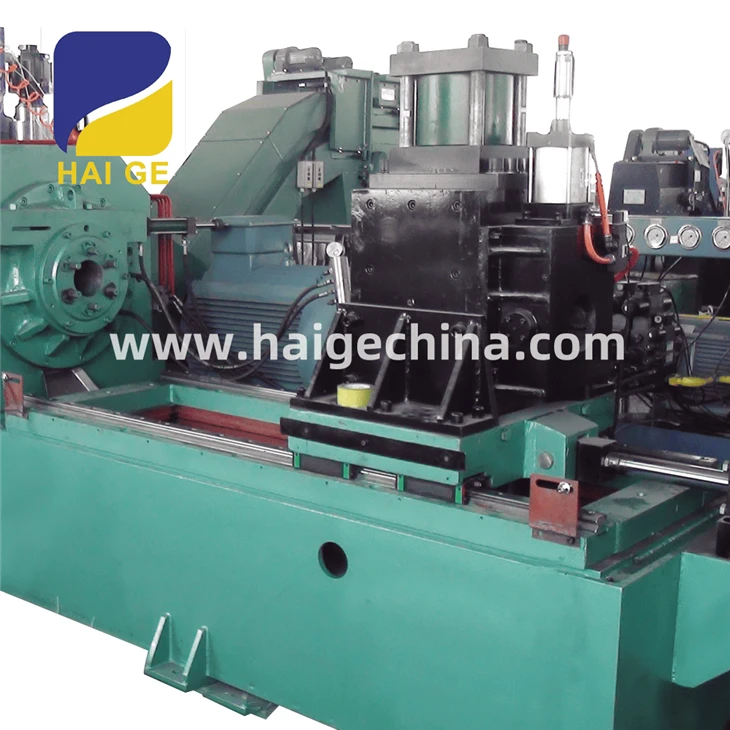

The properties of the WXC130S machine are: strong practicability, stable machining process, fast speed, high efficiency and good surface quality of finished product. The machine line is semi automatic, Due to the increase of Air and oil lubrication device, the bearing life is extended by 3-6 times, and the material feeding speed can reach 3.5m/min.
Transfer box and cardan shaft drive is more reliable. Extracting trolley structure is adopted in extracting process to avoid the crushing injury of material discharge.
|
Model |
WXC130S |
|
|
Material |
Diameter Range(mm) |
Φ37~Φ135X2800~6000 |
|
Yield Strength σb(Mpa) |
≤1000 |
|
|
Surface Hardness |
≤HB320 |
|
|
Original Curvature Curvature(mm/m) |
≤1 .5① |
|
|
Diameter Tolerance |
According to GB 702-88, 2 group |
|
|
Roundness |
≤50% of the diameter tolerance |
|
|
Surface Roughness(Ra) |
≤25～50mm |
|
|
After Peeling |
Diameter Range(mm) |
Φ35~Φ130 |
|
Radius Cutting Depth(mm) |
1~2.5 |
|
|
Diameter Tolerance |
≤h9(standard tolerance grades) |
|
|
Surface roughness(Ra) |
≤3.2μm |
|
|
Roundness |
≤0.03 |
|
|
Feeding Speed(Stepless speed regulation m/min) |
0.3-6(high strength, high hardness, feeding speed must be reduced to process large diameter material) |
|
|
Cutting Head Rotational Speed(rpm)(r/min) |
240~670 |
|
|
Main Motor Power(kW) |
110(6 poles) |
|
|
Feeding Motor Power(kW) |
11(4 poles)(feeding in) |
|
|
Size(m)(for Reference) |
Main Motor 5.3X3.5X3, with auxiliary machine :18X3.5X3 |
|
|
Weight(t)(for Reference) |
Main machine:20.5, with auxiliary machine:29(6 meters) |
|
|
Total Capacity(kW) |
130 |
|
|
Compressed Air Source(Self-prepared) |
0.5~0.8MPa,1.8m3/min,0.8 m3 and above air tank, 2 grade oil&water separator |
|
