China Lathe Machine Tool Peeling for SUS Mild Bar

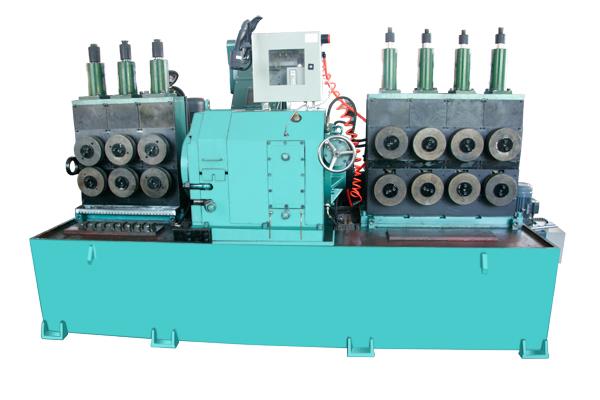

Series WXC Peeling machine is a high-efficiency lathe which is specialized in processing the surface of steel round bar and steel wire rod, for example, straightening, peeling, cutting and polishing, etc.
Not only quickly remove surface hardened layer, cracks and other defects, but also can get high precision.
During processing, the bar doesn’t rotate itself. The cutting tools rotates at high speed to peel the surface of the bar. At the same time, after peeled , the bar keeps walking forward.
Shapes of Workpiece are requested long steel round bar and steel wire rod.
Videos: https://www.youtube.com/channel/UCVLS32BMEd5Vof2153VzNKw
JUST FOR REFERNCE
Model | WXC40CA | |
Material | Diameter Range（mm） | Φ8~Φ36X2200~unlimited |
Yield Strength σb（Mpa） | ≤1100 | |
Surface Hardness | ≤HB320 | |
Original Curvature FEFEFEFEFCCCCCCIFJEICurvature（mm/m） | ≤1 .5① | |
Diameter Tolerance | According to GB 702-88, 2 group | |
Roundness | ≤50% of the diameter tolerance | |
Surface Roughness（Ra） | ≤25～50mm | |
After Peeling | Diameter Range（mm） | Φ7~Φ35 |
Diameter Cutting Depth（mm） | 0.20~1.50 | |
Diameter Tolerance | ≤h10 | |
Surface Hardness（Ra） | ≤6.3μm | |
Curvature（mm/m） | The same as material | |
Roundness | ≤0.03 | |
Feeding Speed（Stepless speed regulation m/min） | 1.0~10.0（high strength, high hardness, feeding speed must be reduced to treat large diameter material） | |
Cutting Head Rotational Speed（rpm）（r/min） | 450~1500 | |
Main Motor Power（kW） | 30/45 | |
Feeding Motor Power（kW） | 4（feeding in） +0.55（extracting） | |

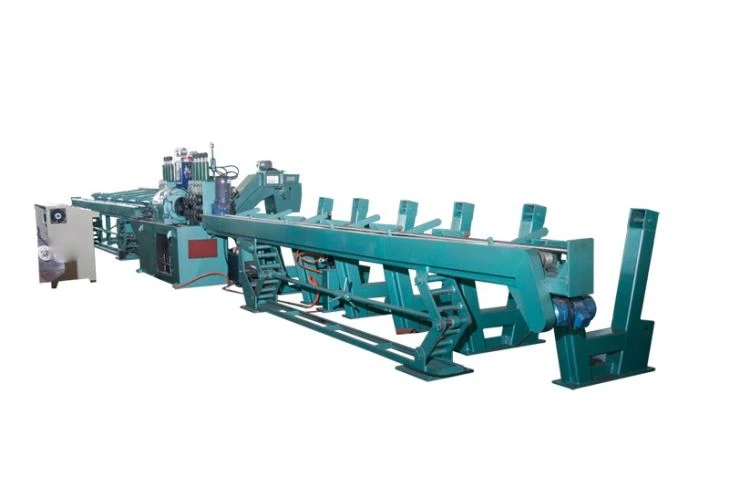

Size（m）（for Reference） | Main Machine 2.5X2.2X1.5 , whole machine (with racks ):12.5X2.2X1.5 | |
Weight（t）（with racks for Reference） | 7.0 | |
Total Capacity（kW） | 45/60 | |
Compressed Air Source（Self-prepared） | 0.5~0.8MPa、1.8m3/min、0.8 m3 and above air tank、 2 grade oil&water separator | |
Compared with ordinary lathe
1. Ordinary lathe has great restriction for processing long shaft.
Centerless lathe can process the bar of infinite length in theory.
2. Centerless lathe can process not only bars, but also wire rod, including wire rod to wire rod, and wire rod to bar.
3. The working efficiency of centerless lathe is dozens of the ordinary lathe, its processing speed is 1~12m/min.
4. High precision. After peeling, the tolerance of diameter reach≤IT9, surface roughness≤6.3μm.
After-sale Service System
1. Free quality guarantee period for 12 months
2. Free long-term technical support
3. Free train for buyer's operator in our factoty
4. Fast response service within 24 hours
5. Our engineers can offer overseas service, including guiding intallation, commissioning, training, etc.
Any question , please feel free to ask me .
