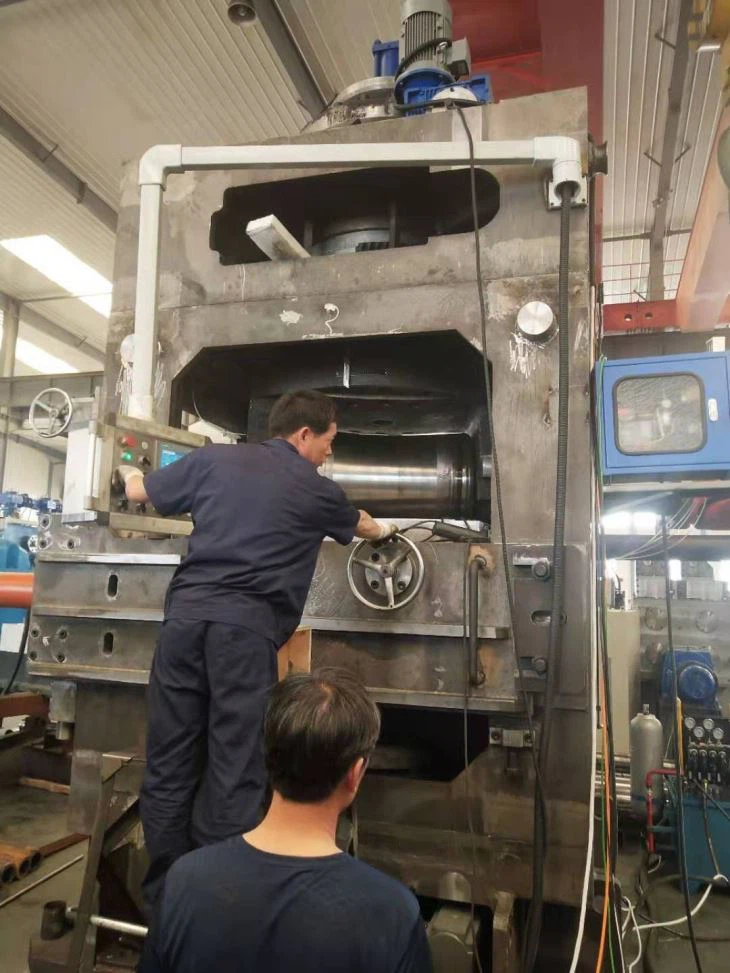

China Lathe Machine Tool Peeling for SUS Mild Bar
Series WXC Peeling machine is a high-efficiency lathe which is specialized in processing the surface of steel round bar and steel wire rod, for example, straightening, peeling, cutting and polishing, etc.
Not only quickly remove surface hardened layer, cracks and other defects, but also can get high precision.
During processing, the bar doesn’t rotate itself. The cutting tools rotates at high speed to peel the surface of the bar. At the same time, after peeled , the bar keeps walking forward.
Shapes of Workpiece are requested long steel round bar and steel wire rod.
Videos: https://www.youtube.com/channel/UCVLS32BMEd5Vof2153VzNKw
JUST FOR REFERNCE
JY130A | ||||
Raw
Material
| Diameter Range（mm） (excluding drawing material) | Tensile Strength σb≤450（M pa） | Φ35≤d≤Φ130（L ≥3000） | |
Tensile Strength σb≤1000（M pa） | Φ35≤d≤Φ120（L ≥3000） | |||
Surface Hardness | ≤HB380（≤HRC42） | |||
Straightness(mm/m） | Bright Steel≤3 Black Material≤6 | |||
Diameter Tolerance | Bright Steel≤IT10 Black Material d-2-GB/T702-2004 | |||
Circular Degree | d≤50 | ≤50% of diameter tolerance | ||
50<d≤80 | ≤65% of diameter tolerance | |||
d>80 | ≤70% of diameter tolerance | |||
Diameter Range（mm） (excluding drawing material) | Bright bar≤3.2mm～6.3mm | |||
Finished
Products
| Straightness（mm/m） | Bright bar≤0.40 Black bar≤1.5 | ||
Diameter Tolerance | Bright bar≤IT9 Black bar：Much better than raw material | |||
Surface Roughness（Ra） | Bright bar≤0.8μm Black bar：Much better than raw material | |||
Roller Quantity (Pcs) | 2 | |||
Roller Diameter (mm) | Φ460 | |||
Straightening Feeding Speed(m/min) | 2~10 | |||
Host Machine Motor Power (KW) | 90 X 2 | |||
Lifting Motor Power (KW) | 5.5 | |||
Host Machine Outline Dimensions (Length*Width*Height) | Host Machine 11m X3.4m X4.6m | |||
Weight | Host Machine 44T | |||
Total Capacity（for your reference）KW | 200 | |||
Compressed Air Source（user prepare by themselves） | 0.5~0.8MPa、1.8m3/min、two-stage oil-water separator | |||
Compared with ordinary lathe
1. Ordinary lathe has great restriction for processing long shaft.
Centerless lathe can process the bar of infinite length in theory.
2. Centerless lathe can process not only bars, but also wire rod, including wire rod to wire rod, and wire rod to bar.
3. The working efficiency of centerless lathe is dozens of the ordinary lathe, its processing speed is 1~12m/min.
4. High precision. After peeling, the tolerance of diameter reach≤IT9, surface roughness≤6.3μm.
After-sale Service System
1. Free quality guarantee period for 12 months
2. Free long-term technical support
3. Free train for buyer's operator in our factoty
4. Fast response service within 24 hours
5. Our engineers can offer overseas service, including guiding intallation, commissioning, training, etc.
Any question , please feel free to ask me .
