WXC-40C China Famous Centerless Lathe Bar Tube Wire Peeling Machine
WXC-40C China Famous Centerless Lathe Bar Tube Wire Peeling Machine

WXC-40C China Famous Centerless Lathe Bar Tube Wire Peeling Machine

Quick Details Place of Origin: Shandong, China Brand Name: HAIGE Condition: New Machine Type: Bar peeling machine Video outgoing-inspection: Provided Machinery Test Report: Not Available Marketing Type: Hot Product 2019 Warranty of core components: 1 Year Core Components: PLC, Bearing, Gearbox, Motor, Gear Warranty: 1 Year, 1year except for fast-wearing parts After-sales Service Provided: Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support Key Selling Points: Competitive Price with long service life After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service Local Service Location: None Applicable Industries: Manufacturing Plant, Retail, Energy & Mining Showroom Location: None After sales service: field installation, field maintenance, video technical support Applications: construction works, bulding material shops, energy & mining Diameter range: 10-40mm Type: semi-auto Color: customized Standard: ISO9001 Pesonnel training: provided Power Supply: 380V±10% Raw material: Steel bar/ tube
Send Inquiry
Product Description
Our advantage:
1.Customized design is available OEM ODM are welcome 2 Reply your enquiry in 24 working hours 3 Expericenced staffs will answer all your questions in professional and fluent English 4.Exclusive unique solution can be proof provided by our well-trand and professional  engineers 5.Special discount  can be offered with large quantity 6.We will try our best to meet your requirements and supply you best quality auto coil spring for suspension  system
Specification
Model
WXC40C
Material
Diameter Range(mm)
Φ10~Φ40
Length
2000-6000mm( based on customer requirements)
Yield Strength σb(Mpa)
≤1100
Surface Hardness
≤HB320
Original Curvature
≤1.5
Diameter Tolerance
According to GB 702-88, 2 group
Roundness
≤50% of the diameter tolerance
Surface Roughness(Ra)
≤25~50mm
After Peeling
Diameter Range(mm)
Φ10~Φ40
Diameter Cutting Depth(mm)
0.20~1.0
Diameter Tolerance
≤IT10
Surface Hardness(Ra)
≤6.3μm
Curvature(mm/m)
The same as material
Roundness
≤0.03
Feeding Speed(Stepless speed regulation m/min)
1.0~8.0(high strength, high hardness, feeding speed must be reduced to treat large diameter material)
Cutting Head Rotational Speed(rpm)(r/min)
450~1250
Main Motor Power(kW)
30
Feeding Motor Power(kW)
4(feeding in)+0.55(extracting)
Size(m)(for Reference)
Main Machine 2.0X2.2X1.5
whole machine (with racks ):12.0X2.2X1.5
Weight(t)(with racks for Reference)
Main machine: 3.3 Whole machine :4.5
Total Capacity(kW)
45
Compressed Air Source(Self-prepared)
0.5~0.8MPa, 1.8m3/min, 0.8 m3 and above air tank, 2 grade oil & water separator

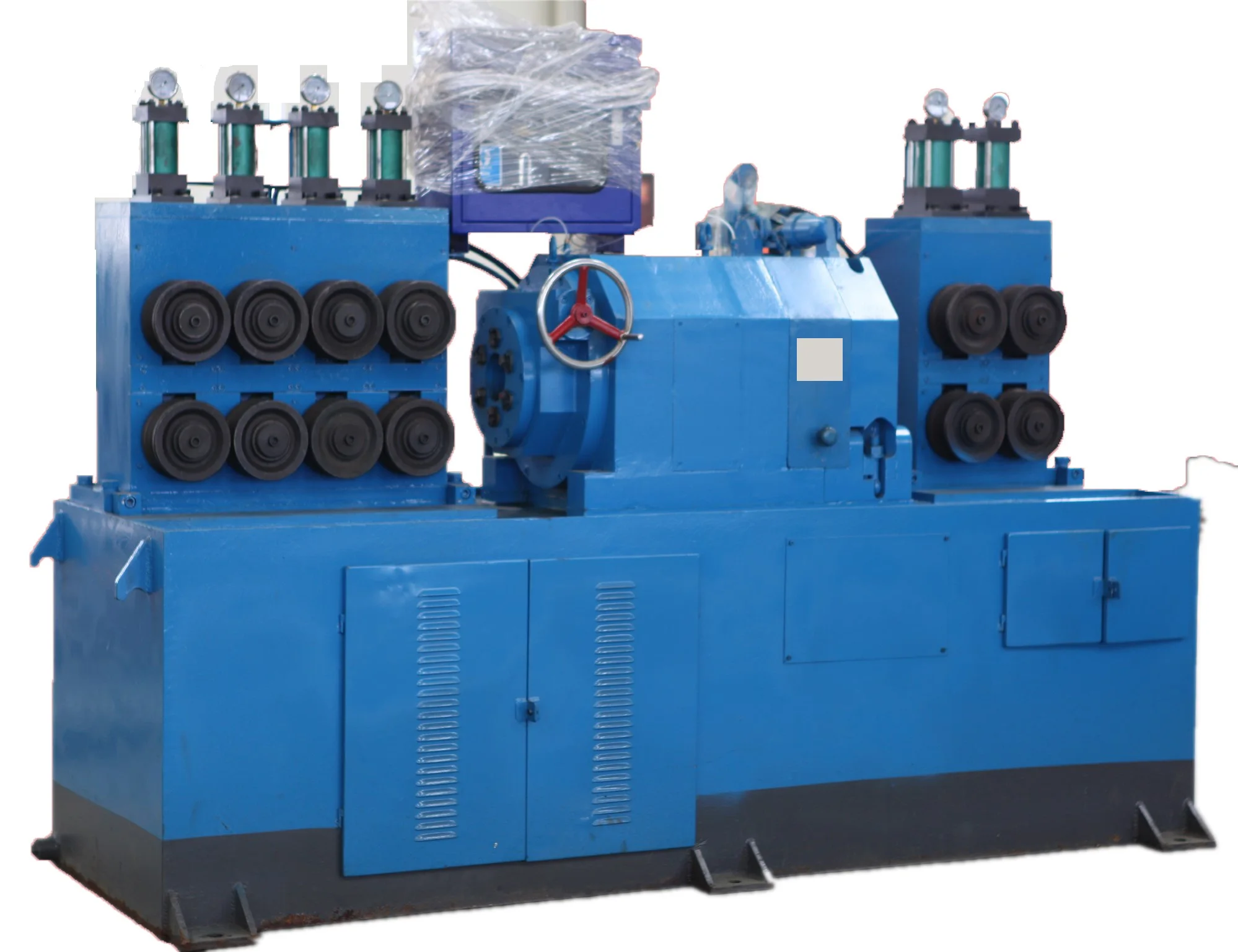

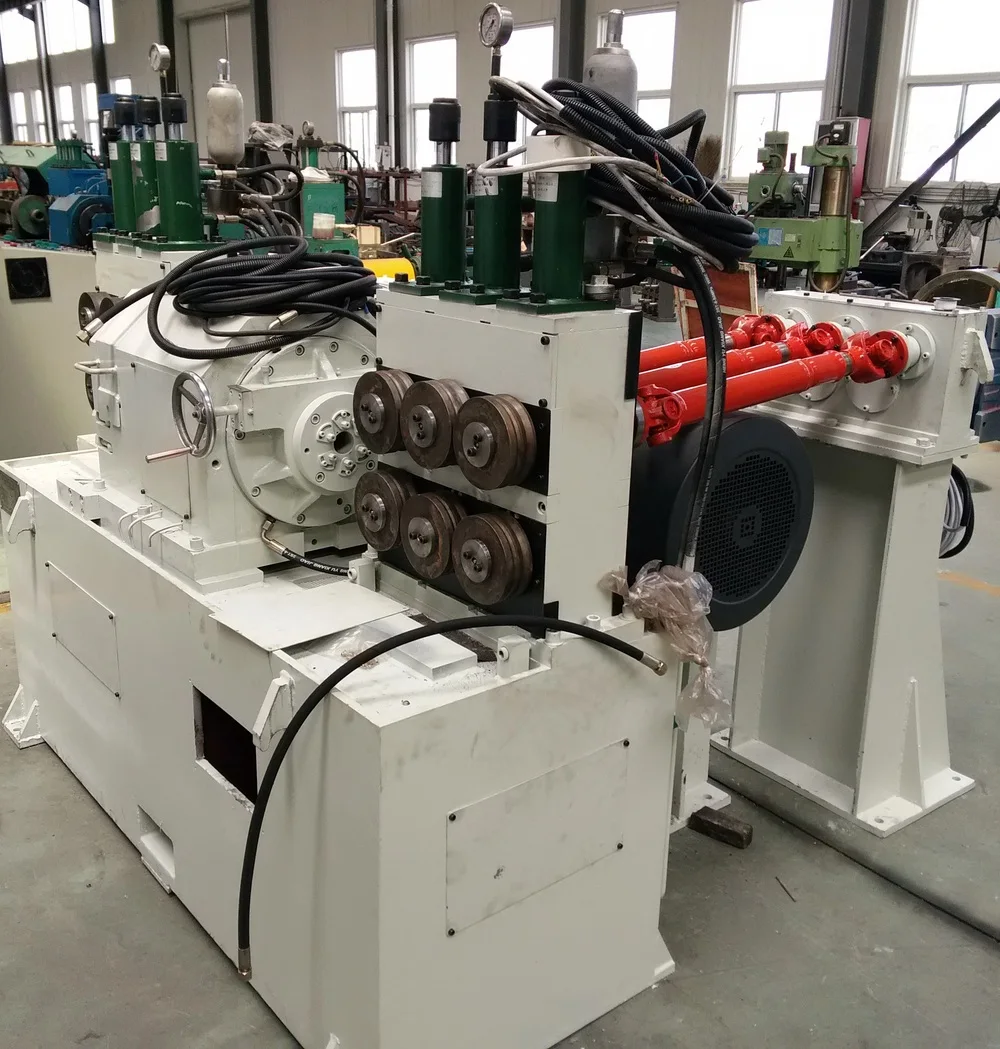

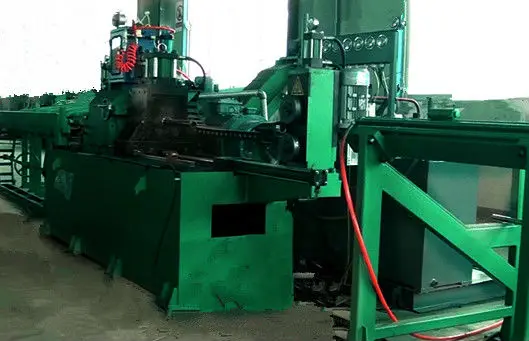

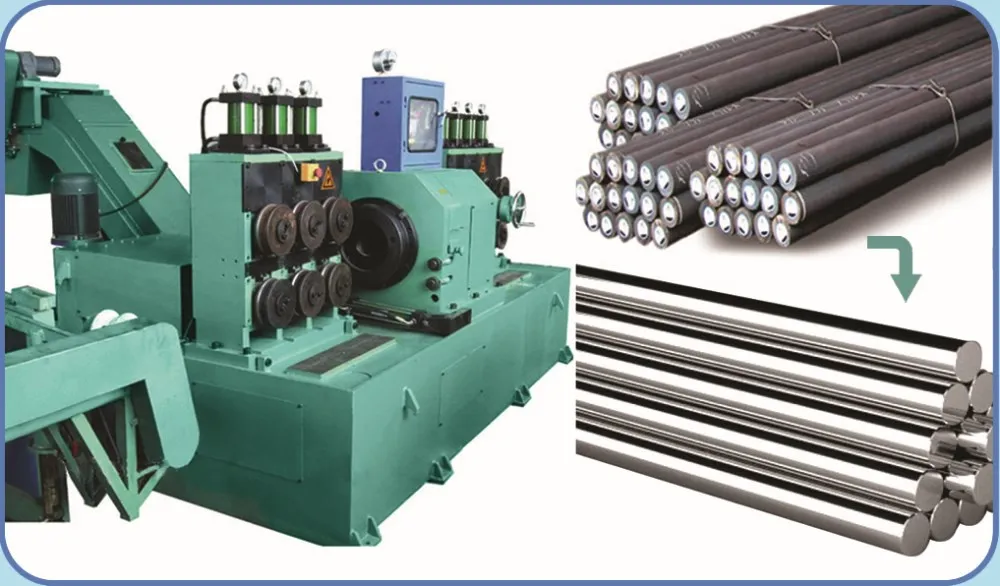

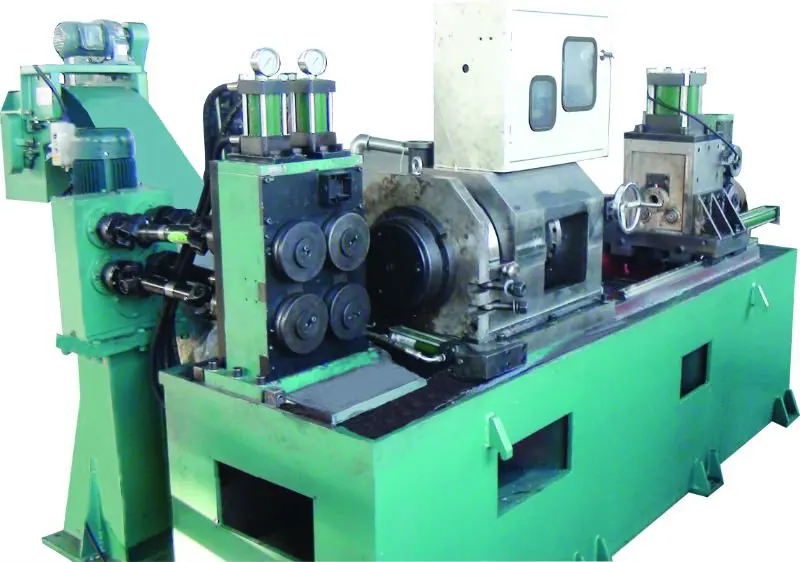

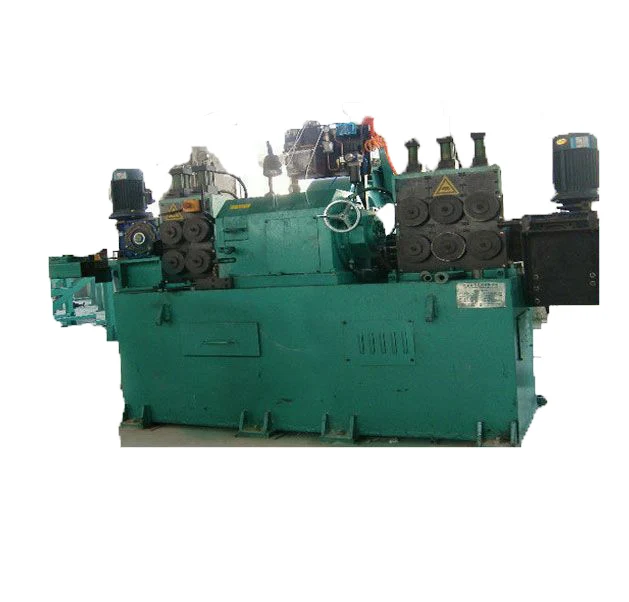

Product Display
