Main Parameters:
| Size | Φ100mm- - Φ250mm |
| Length | 2.5m- -9m |
| Wall thickness | 1.5-9mm |
| Material | steel pipe, stainless steel pipe |
| Power supply | AC380V± 10%, 50HZ 3-phase.The customer needs to provide a gas supply. |
| Total power | 40KW |
| Processing product diameter range | Φ100-Φ250mm |
| Length range of processing products | 2.5m-9m |
| Maximum speed of processing products | 8 pieces / min |
| Maximum load bearing of automatic feeder storage box | 3.5T |
| Size of the equipment | 10400mm * 5720mm * 1830mm |
|
Electrical performance parameters:The control host adopts Siemens programmable PLC and all electrical components adopts Schneider or domestic high-quality accessories. |
|
Description of the full automatic chamfer machine
The design group consists of an auto-feeder and a chamfer machine, The rack delivers material to the host, the host parallel materialmoving mechanism first sends the pipe material into the left alignment roller table to proceed left moving and alignment, After alignment, the tube material sent to the left chamfer machine head for chamfer through the parallel material moving mechanism, after the left chamfer station complete the work,the tube material which finishes the left chamfer was sent to the right alignment roller table by the parallel material moving mechanism to proceed the right side chamfer and alignment,the aligned pipe is also sent by the parallel material moving mechanism to the right chamfer machine head for the right chamfer, This machine group can complete the left and right alignment roller transmission alignment chamfer work of the pipe at the same time, and one action can complete the two sides chamfer work of the bar at the same time, thus greatly improves the work efficiency.

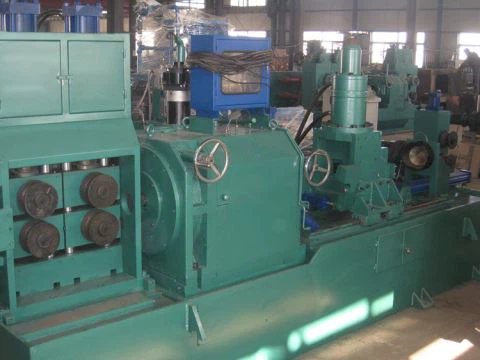

Product display:
