high precision stainless steel coil peeling machine
1.General Description:
Yantai Haige Machine Tools Co.,Ltd. was built in 1999, which specializes in producing steel finishing equipment,such as high precision stainless steel coil peeling machine, Series JY Bar Straightening Machine,Abrasive Belt Ginder, Drawing Machine,Shot Blasting Machine, Centerless Grinding Machine,CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam,India, Pakistan,Iran,South Korea,North Korea,Taiwan and other countries and regions.
2.Specific Description:

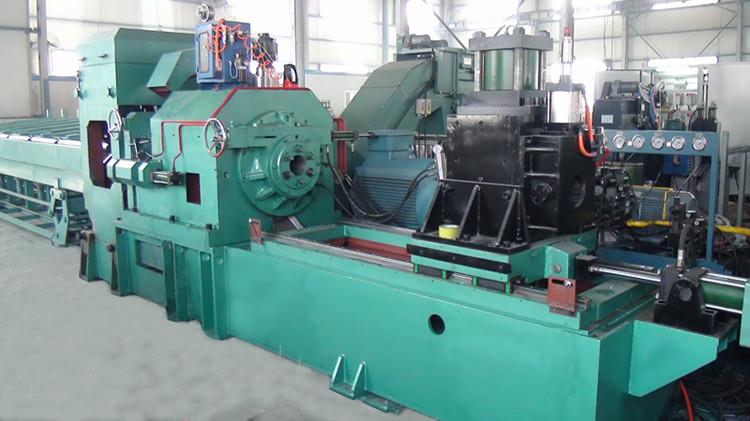

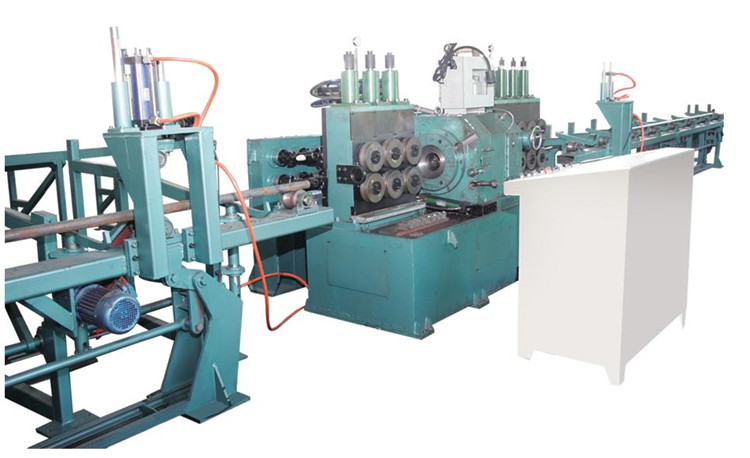

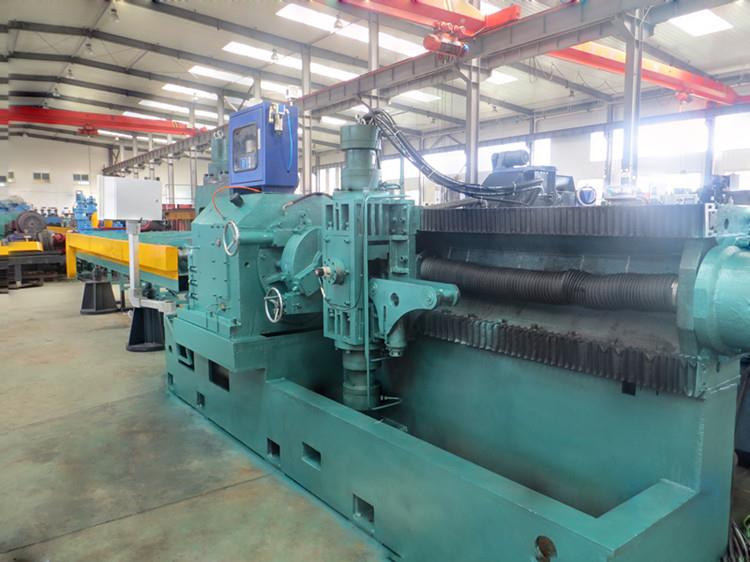

High precision stainless steel coil peeling machine, named coil pealing machine, which can be used to peel coil into bright bars. High precision stainless steel coil peeling machine is developed to remove the surface defects of coil such as decarburized layer and cracks by center-less lathe, so as to make the surface bright and smooth. Then cut the coil into straight bars by straightening cutting machine and high precision two-roller straightening machine, realizing the transformation of the black coil rod into bright bars. High precision stainless steel coil peeling machine has two types, such as semi-automatic and CNC.
model | WXC30S | |
material requirement | diameter range (mm) | 6.5＜dia＜31 |
material length (mm) | ≥1400 | |
yield strength(Mpa) | ≤1100 | |
surface hardness | ≤HB320 | |
straightness (mm/m) | ≤1.5 | |
diameter tolerance | according to GB 702-2004 second group | |
roundness(mm) | ≤50% of diameter tolerance | |
surface roughness(Ra) | ≤25～50μm | |
finished product | diameter range(mm) | 6≤dia≤30 |
diameter cutting depth(mm) | 0.5~1.0 | |
diameter tolerance | ≤h9 | |
surface roughness (Ra) | ≤3.2μm | |
feeding speed (m/min) | 1.0~10.0 | |
cutting head rotation rate per minute(rpm) | 900~2500 | |
main motor(kw） | 45 | |
total capacity（kw） | 65 | |
compressed air (prepared by user) | 0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine | |
