CNC stainless steel coil peeling machine
General Description:
Yantai Haige Machine Tools Co.,Ltd. was built in 1999, which specializes in producing steel finishing equipment,such as CNC stainless steel coil peeling machine, Series JY Bar Straightening Machine,Abrasive Belt Ginder, Drawing Machine,Shot Blasting Machine, Centerless Grinding Machine,CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam,India, Pakistan,Iran,South Korea,North Korea,Taiwan and other countries and regions.
Specific Description:

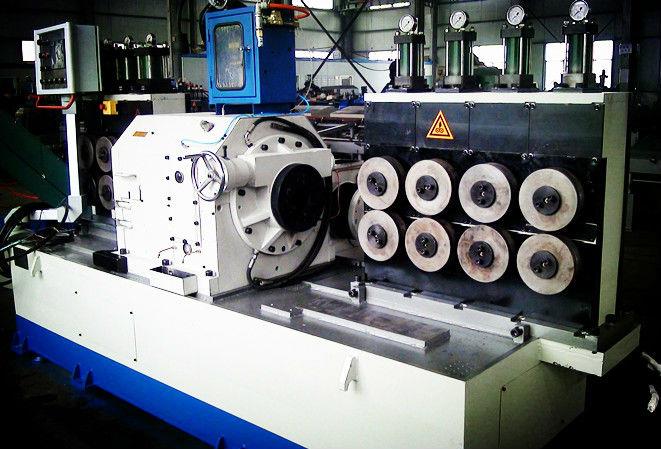

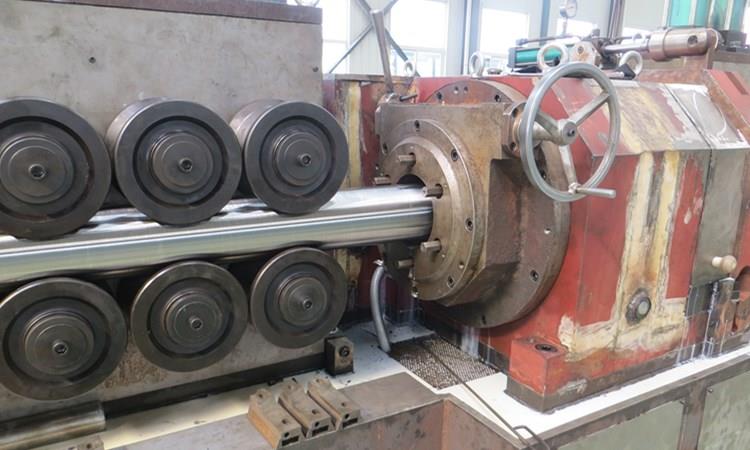

CNC stainless steel coil peeling machine, named coil pealing machine, is one of main products of Yantai Haige Machine Tools Co., Ltd. This machine can be used to peel coil into bright bars. WXC Series Centerless Lathe (commonly known as peeling machine) is a new generation high-efficiency lathe machine which is specialized in processing of metal bar surface such as slender shaft. It can not only quickly remove defects on the surface of round steel such as decarburization layer and cracks, but also realize relatively high precision and roughness. It is especially suitable for processing of super long round steel bar, with working efficiency several times of the traditional processing technology.
model | WXC40S | |
material requirement | diameter range (mm) | 11＜dia＜40 |
material length (mm) | ≥1400 | |
yield strength(Mpa) | ≤1100 | |
surface hardness | ≤HB320 | |
straightness (mm/m) | ≤1.5 | |
diameter tolerance | according to GB 702-2004 second group | |
roundness(mm) | ≤50% of diameter tolerance | |
surface roughness(Ra) | ≤25～50μm | |
finished product | diameter range(mm) | 10≤dia≤39 |
diameter cutting depth(mm) | 0.5~2.0 | |
diameter tolerance | ≤h9 | |
surface roughness (Ra) | ≤3.2μm | |
feeding speed (m/min) | 1.0~12.0 | |
cutting head rotation rate per minute(rpm) | 900~2500 | |
main motor(kw） | 45 | |
total capacity（kw） | 65 | |
compressed air (prepared by user) | 0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine | |
