semi automatic stainless steel coil peeling machine
General Description:
Yantai Haige Machine Tools Co.,Ltd. was built in 1999, which specializes in producing steel finishing equipment,such as semi automatic stainless steel coil peeling machine, Series JY Bar Straightening Machine,Abrasive Belt Ginder, Drawing Machine,Shot Blasting Machine, Centerless Grinding Machine,CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam,India, Pakistan,Iran,South Korea,North Korea,Taiwan and other countries and regions.
Specific Description:

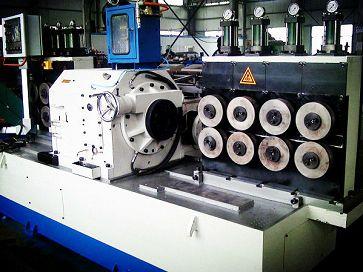

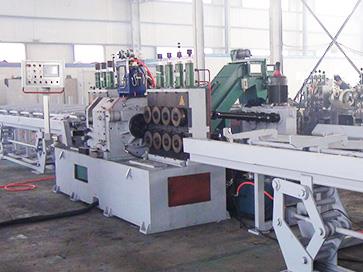

semi automatic stainless steel coil peeling machine, can process the stainless steel coil. The diameter of material should be 6-16 mm. The out diameter of coil is 1200-1300mm, while the inner diameter of coil should be 900-1000mm. The height of the coil should be less than 1000mm.
model | WXC80S | |
material requirement | diameter range (mm) | 21＜dia＜83 |
material length (mm) | ≥2200 | |
yield strength(Mpa) | ≤1100 | |
surface hardness | ≤HB320 | |
straightness (mm/m) | ≤1.5 | |
diameter tolerance | according to GB 702-2004 second group | |
roundness(mm) | ≤50% of diameter tolerance | |
surface roughness(Ra) | ≤25～50μm | |
finished product | diameter range(mm) | 20≤dia≤80 |
diameter cutting depth(mm) | 0.5~3 | |
diameter tolerance | ≤h9 | |
surface roughness (Ra) | ≤3.2μm | |
feeding speed (m/min) | 1~12 | |
cutting head rotation rate per minute(rpm) | 430~1500 | |
main motor(kw） | 75/90 | |
total capacity（kw） | 95/110 | |
compressed air (prepared by user) | 0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine | |
