High Qulaity Continuous 2-channel 1-series Plating Machine

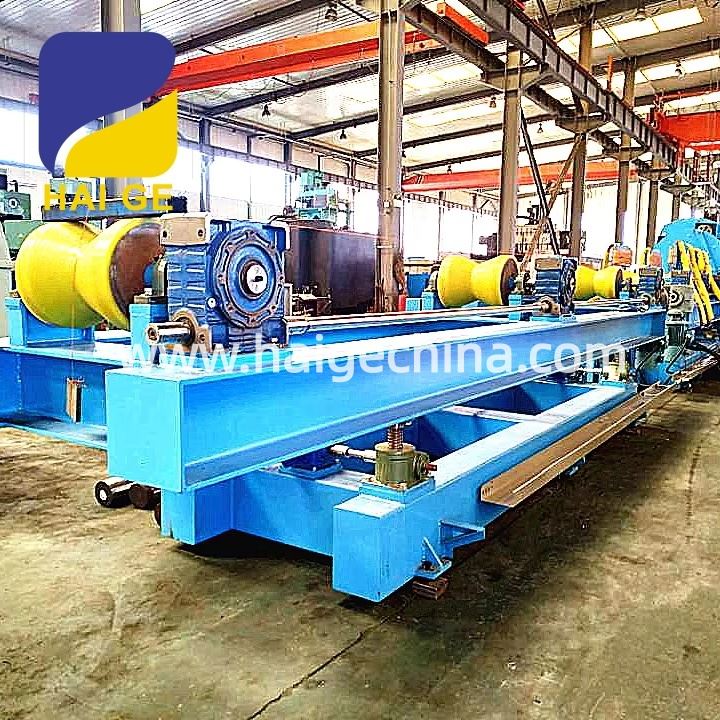

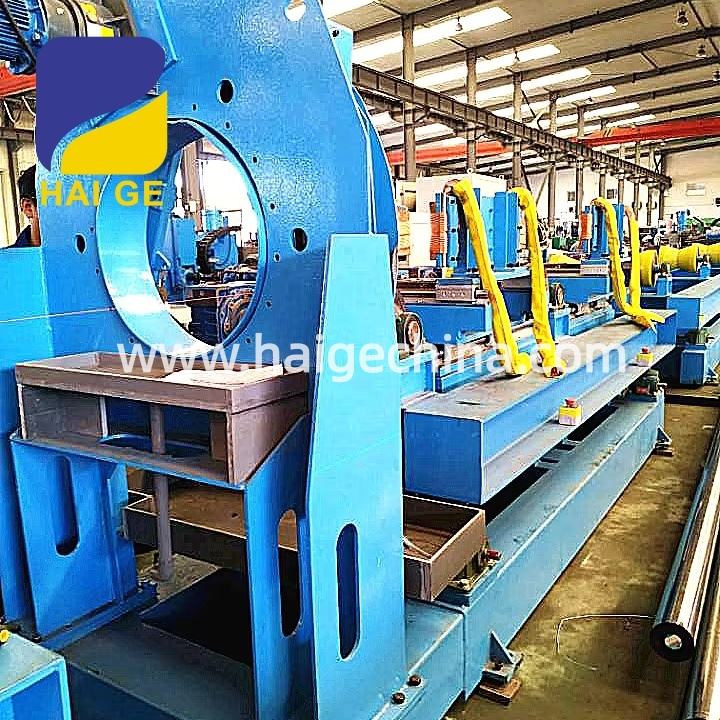

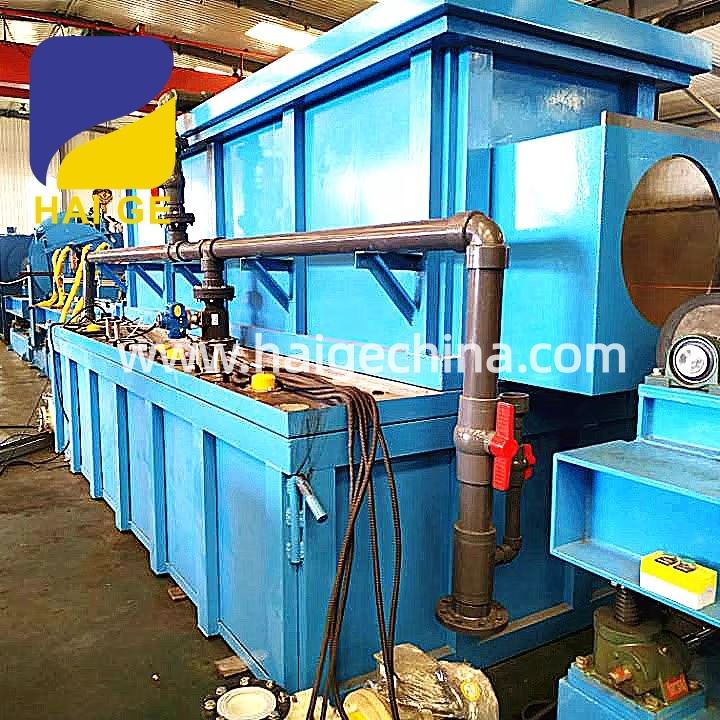

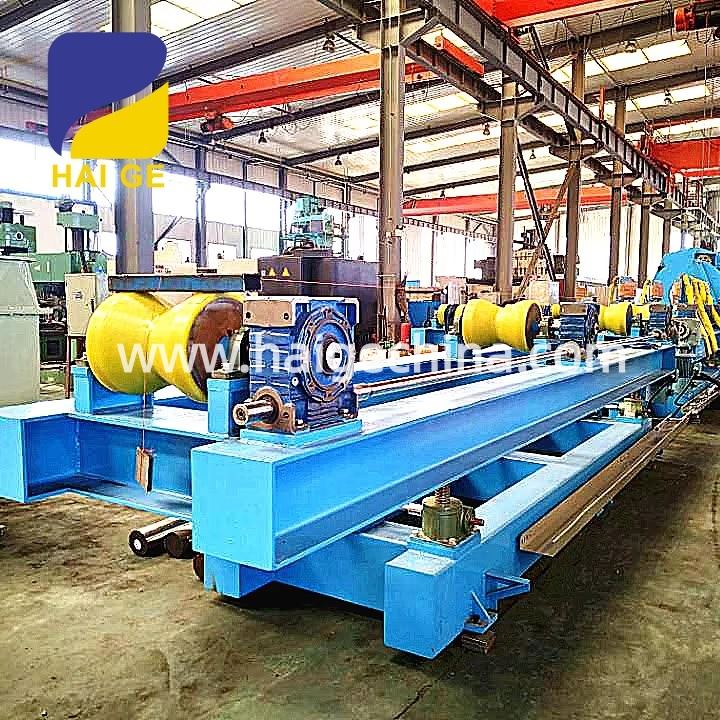

The equipment is through-type, used for two-layer chromium plating on the outer surface of round rod material (slender shaft). The equipment is composed of automatic feeding system, driving system, conductive system, activation system, electroplating system, automatic unloading system, pressure system, temperature control system and electronic control system.

Send Inquiry

S.N	Name	Specification	Qty	Remark
1	rectifier	1500A/12V	2
2	rectifier	100A/12V	2
3	Anode circle	20A-70A/dm²	38	Self-made
4	PVDF circulation pump	5.0HP	2	For circulation the plating liquid
5	Circulation pump	1/2HP	2	For activation ,washing

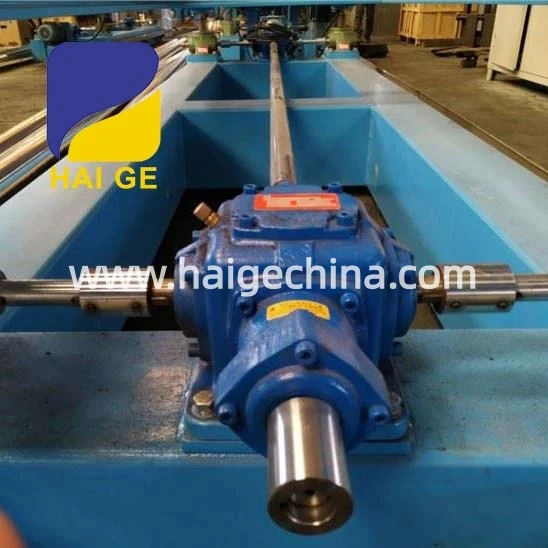

6	Reducer motor	0.75KW	4	drive
7	Reducer motor	0.75KW	8	Up&down
8	Electric heating	4KW	3	Material:Titanium
9	Cooling system	10KW	1

Work process

Fling the material to loading rack after being degreased --automatic loading--conductivedevice--activation system-- plating first time--spray wash--conductive device-- automatic unloading--- unloading the working piece
