High Qulaity Continuous 3-channel 3-series Plating Machine

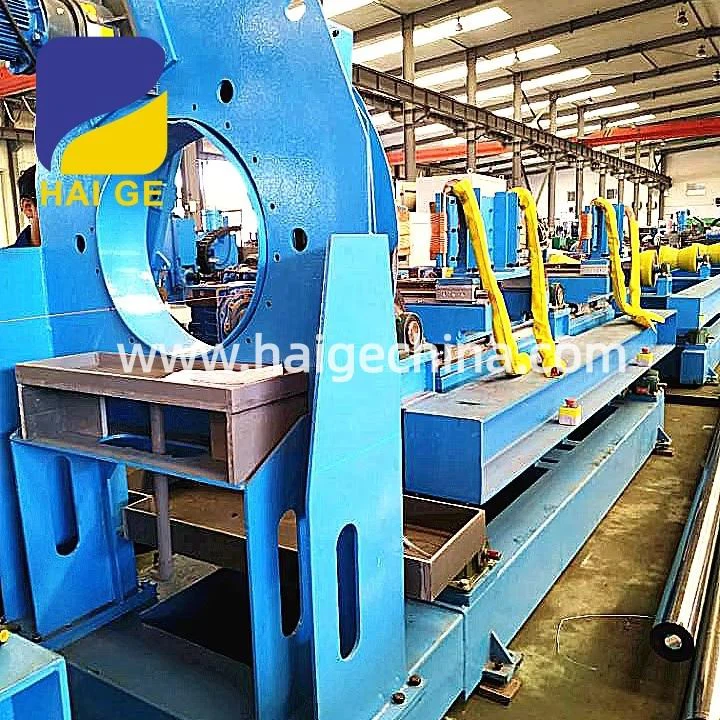

The equipment is through-type, used for two-layer chromium plating on the outer surface of round rod material (slender shaft). The equipment is composed of automatic feeding system, driving system, conductive system, activation system, electroplating system, automatic unloading system, pressure system, temperature control system and electronic control system.

Send Inquiry

Name	Specification	Qty	Remark
rectifier	6000A/12V	3
rectifier	200A/12V	9
Anode circle	20A-70A/dm²	108
PVDF circulation pump	7.5HP	3	For circulation the plating liquid
Circulation pump	1/2HP	6	For activation ,washing
Reducer motor	0.75KW	8	drive
Reducer motor	0.75KW	16	Up&down
Electric heating	7KW	9	Material:Titanium
Cooling system	20KW	1

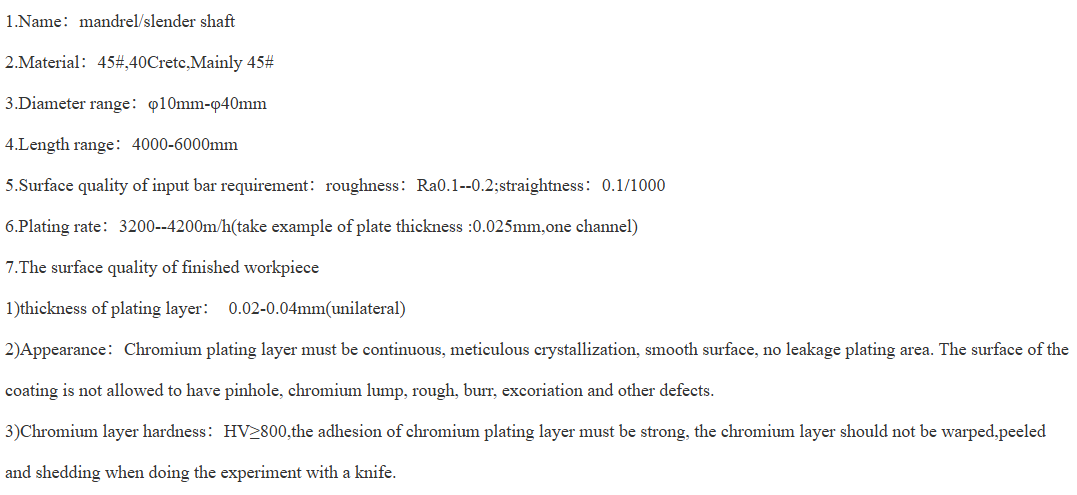

Function and requirements

20250711162858

Work process

Fling the material to loading rack after being degreased --automatic loading--conductive device--activation system-- plating first time--spray wash--conductive device-- activation system--plating second time--spray wash-- conductive device---activation system---plating third time-- spray wash(This washing is used to clean the residual plating solution on the surface of the workpiece after plating to prevent it from causing secondary environmental pollution to the subsequent processing of the workpiece.)--conductive device --automatic unloading(unloading rack)
