CNC brass bar peeler

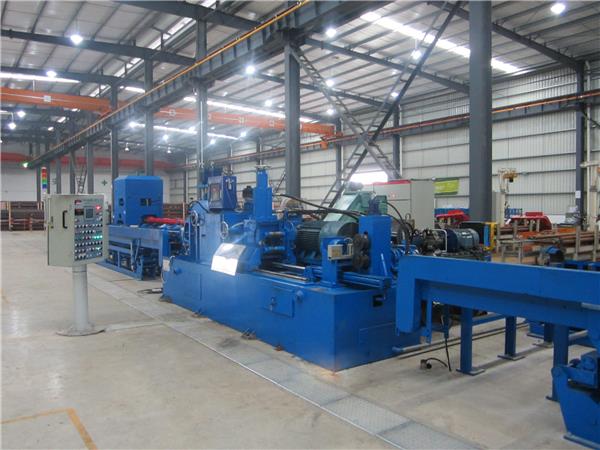

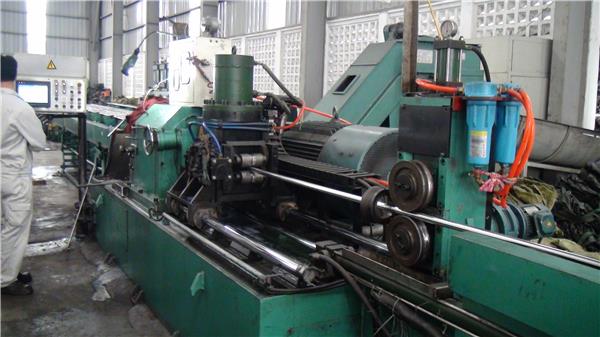

Yantai Haige Machine Tools Co.,Ltd has become China biggest and best CNC brass bar peeler manufacturer after 20 years development . Since 1999, we have manufactured and sold nearly 2000 sets peeler machines and exported nearly 200 sets peelers to India, Russia, Vietnam, South Korea, etc. Our CNC copper bar peeler is composed of main machine , cutting liquid circulation system, chip conveyor , hydraulic system, electric system and racks, etc. With several cutters working together , the efficiency is dozens of times higher than the ordinary lathe .
MODEL | WXC130S | |
Raw material | Diameter Range(mm) | Φ45~Φ130 |
Raw Material Length(mm) | ≥2800 | |
Tensile Strength(Mpa) | ≤1100 | |
Surface Hardness | ≤HB320 | |
Curvature(mm/m) | ≤1.50 | |
Diameter Tolerance | According to GB 702-2004 second group | |
Roundness(mm) | ≤50% of the diameter tolerance | |
Surface Roughness(Ra) | ≤25-50μm | |
Finished products | Diameter Range | Φ44~Φ129 |
Unilateral Turning Depth (mm） | 1~2.5 | |
Diameter Tolerance | ≤IT9 （standard tolerance grade） | |
Surface Roughness(Ra) | ≤12.5μm | |
Curvature(mm/m) | ≤1.5 | |
Roundness(mm) | ≤0.03 | |
Feeding Cutting Speed（m/min） | 0.3--6 (for continuous chips and high strength and hardness should reduce the cutting speed) | |
Cutter Head Rotational Speed(rpm) | 240-670 (Six poles) 360-1000 (Four poles) | |
Main Machine Motor Power(KW) | 110 | |
Auxiliary Machine Motor Power(KW) | 11（feeding part） | |
Main Machine Outline Dimensions | 5.3 X 3.5 X 3 | |
Full Set Machine Outline Dimensions | 18M X 3.5M X 3M | |
Main Machine Weight | 20.5 (29) | |
Total Installed Capacity(KW) | 130 | |
Compressed Air Source | 0.5~0.8MPa、1.8m3/min、more than 0.8 m3 gasholder, two-stage oil-water | |
