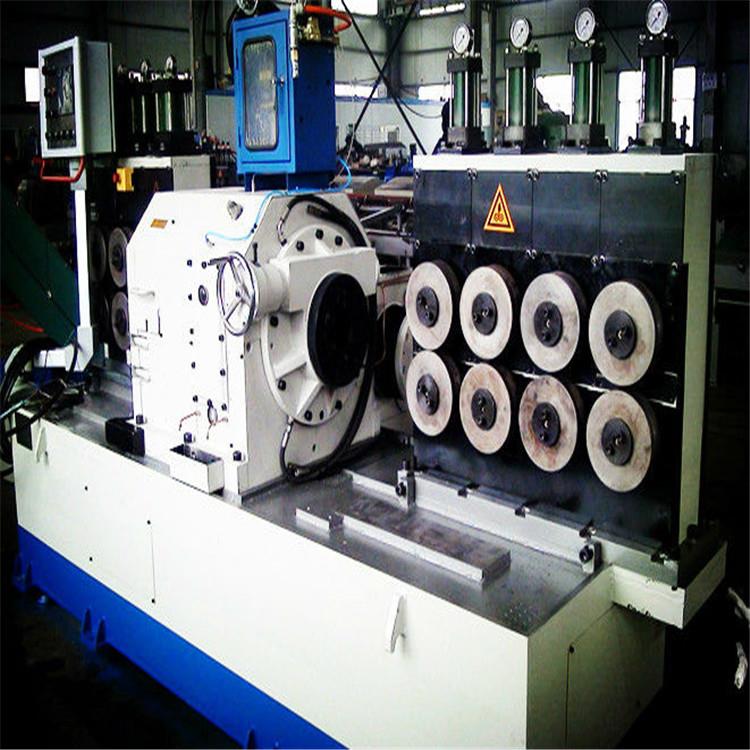

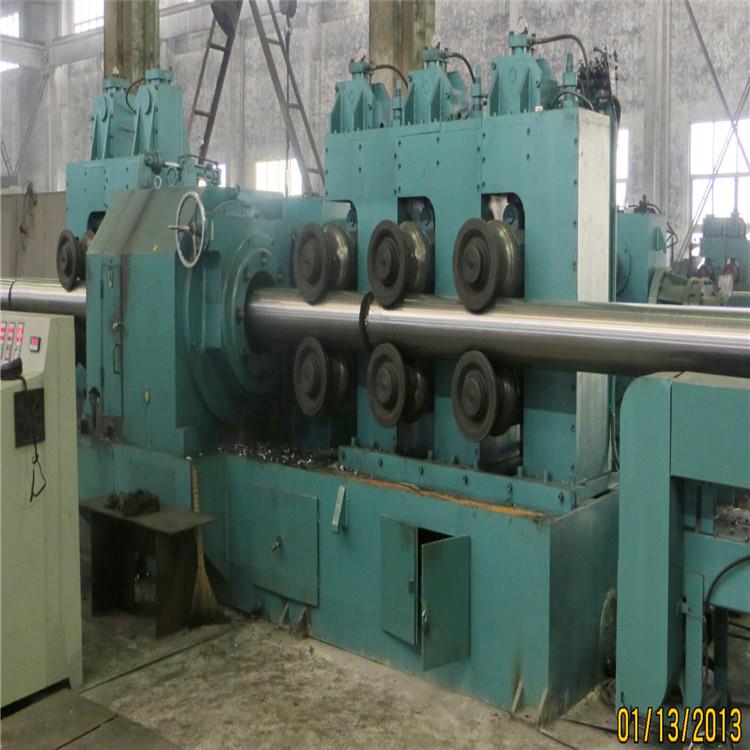

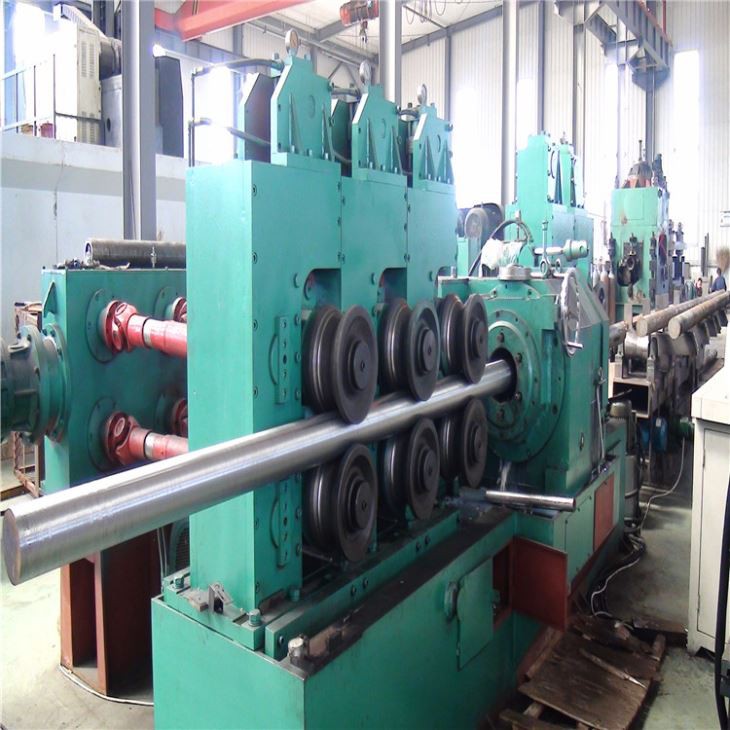

semi automatic copper bar peeler

Semi automatic copper bar peeler made by Yantai Haige Machine Tools Co.,Ltd is widely used in bright bar industry, fastener industry, auto parts industry. Springs industry , hydraulic industry, bearings industry and machining industry . It can wipe off the defect on bar surface , such as surface crack, oxide layer, decarburized layer with high precision and surface roughness. Besides, it can process over-length bar and tube, as well as wire rod, including wire rod to wire rod, wire rod to bar. It is no pollution , all the scraps can be recycled.



Main Technical Parameters—WXC80C

Specification		WXC80C(semi-auto)
RAW MATERIALS	Diameter Range(mm)	Φ20~Φ85
	Raw Material Length(mm)	≥2200
	Tensile Strength (Mpa)	≤1100
	Surface Hardness	≤HB320
	Curvature(mm/m)	≤1.50①
	Diameter Tolerance	According to GB 702-2004 second group
	Roundness（mm）	≤50% of the diameter tolerance
	Surface Roughness(Ra)	≤25~50μm
FINISHED GOODS	Diameter Range	Φ19~Φ79
	Unilateral Cutting Depth (mm）	0.25~1.0
	Diameter Tolerance	≤IT9 (standard tolerance grade)
	Surface Roughness(Ra)	≤6.3μm
	Roundness（mm）	≤0.03
Feeding Cutting Speed（m/min）	1.0-10.0(for continuous chips and high strength and hardness should reduce the speed)
Cutter Head Rotational Speed(rpm)	430~1200
Main Machine Motor Power(KW)	55
Auxiliary Machine Motor Power(KW)	5.5 X 2（Four Poles）
Main Machine Outline Dimensions (LengthWidthHeight) m	3.0m X 3.5m X 2.4m
Full Set Machine Outline Dimensions (including auxiliary machine) (LengthWidthHeight) m	15.0m X 5.0m X 2.4m
Main Machine Weight (including auxiliary weight) (T)	8.0 (11.5)
Total Capacity(KW)	75
Compressed Air Source (user prepare by themselves）	0.5-0.8Mpa,1.8m3/min、0.8m3 gasholder、two-stage oil-water separator and compressed air freezing drier.
