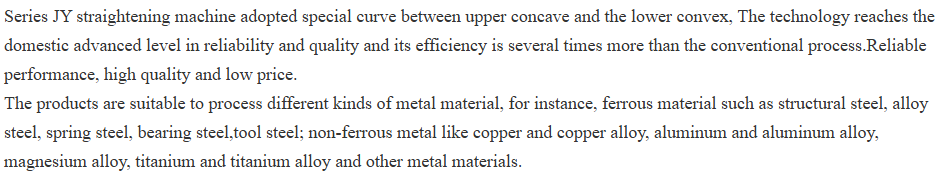

The WXC series of center-less lathe and JY series of straightening machines are high -level new equipment with independent intellectual property rights on the basis of absorbing and digesting foreign advanced technology, making adventurous innovation, and research&development take into consideration of actual situation of domestic companies. Our technology reaches the domestic advanced level in reliability and quality while keeps a relatively lower price, with its efficiency more several times than the conventional process. Our products are suitable to process different kinds of metal material, for instance, black metal material such as structural steel, alloy steel, spring steel, bearing steel,tool steel, copper and copper alloy, aluminum and aluminum alloy, magnesium alloy, titanium and titanium alloy and other non-ferrous metal materials. WXC series of centerless lathe is high-efficient specialized lathe to make a rough or fine machining to the surface of bar material such as slender shaft and other bars. It is able to not only get rid of the imperfection on the bar surface , de-carburized layer, crack etc, but also to guarantee relatively high accuracy. It is especially suitable to process extra long bar and bar with large machining allowance.
Send Inquiry

JY



-1

Model

JY60Z

Input bar

Straightening dia range(mm)(non drawn raw material )

Tensile strength σb≤450(Mpa)

Φ15≤d≤Φ50(L ≥2000)

(2000≤L ≤9000)

Tensile strength σb≤1000(Mpa)

Φ15≤d≤Φ40(L ≥2000)

(2000≤L ≤9000)

Surface hardness

Bright bar: ≤HB320

straightness(mm/m)

Bright bar:≤3

Dia tolerance(mm)

Bright bar:≤h9

roundness

≤0.04

roughness(Ra)

Bright bar:≤3.2~6.3μm

Output bar

straightness(mm/m)

Bright bar:≤0.3mm black bar:1mm/m(measured value minus ovality, excluding two ends range within)

Straightness measurement

Platform feeler gauge

Dia tolerance

Bright bar:≤h9

roughness(Ra)

Bright bar:0.4-0.8μm

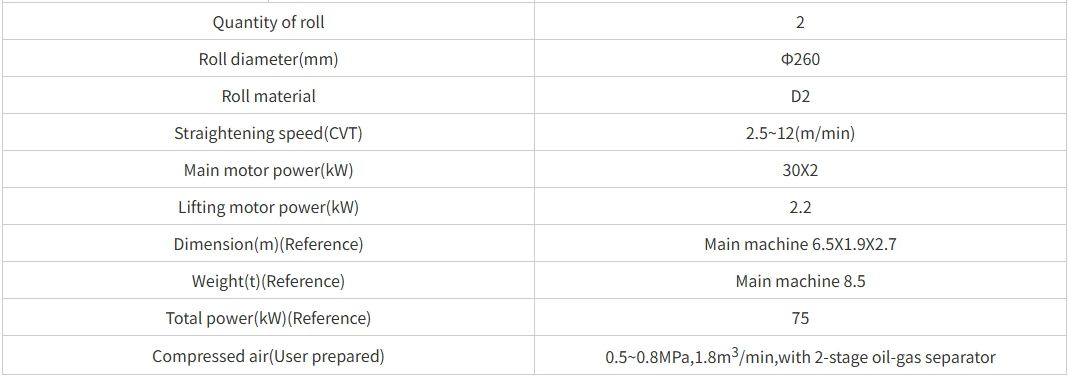

20250430154115

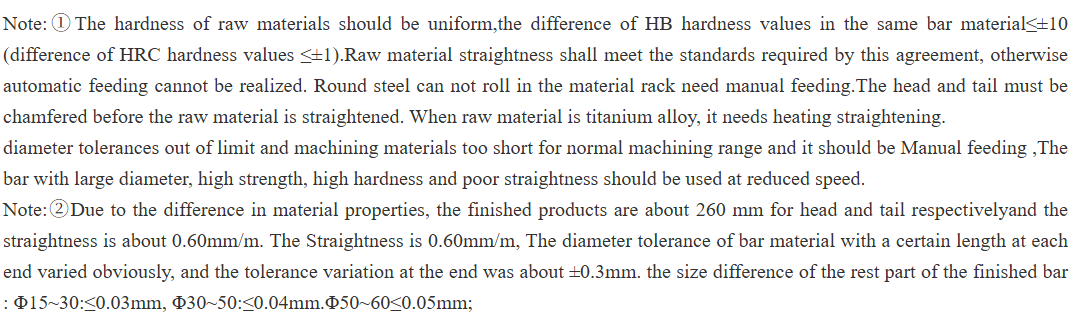

20250430152108



Equipment Composition

Host machine: 1 nos.

Loading rack(or online mechanism): 1 set

Loading groove: 1 set

Front-clamping pitch feeding:1 set

Rear-clamping extracting: 1 set

Unloading groove: 1 set

Collecting box: 1 set

Cooling and lubrication system:1 set

Electric system:1 set



Product display:

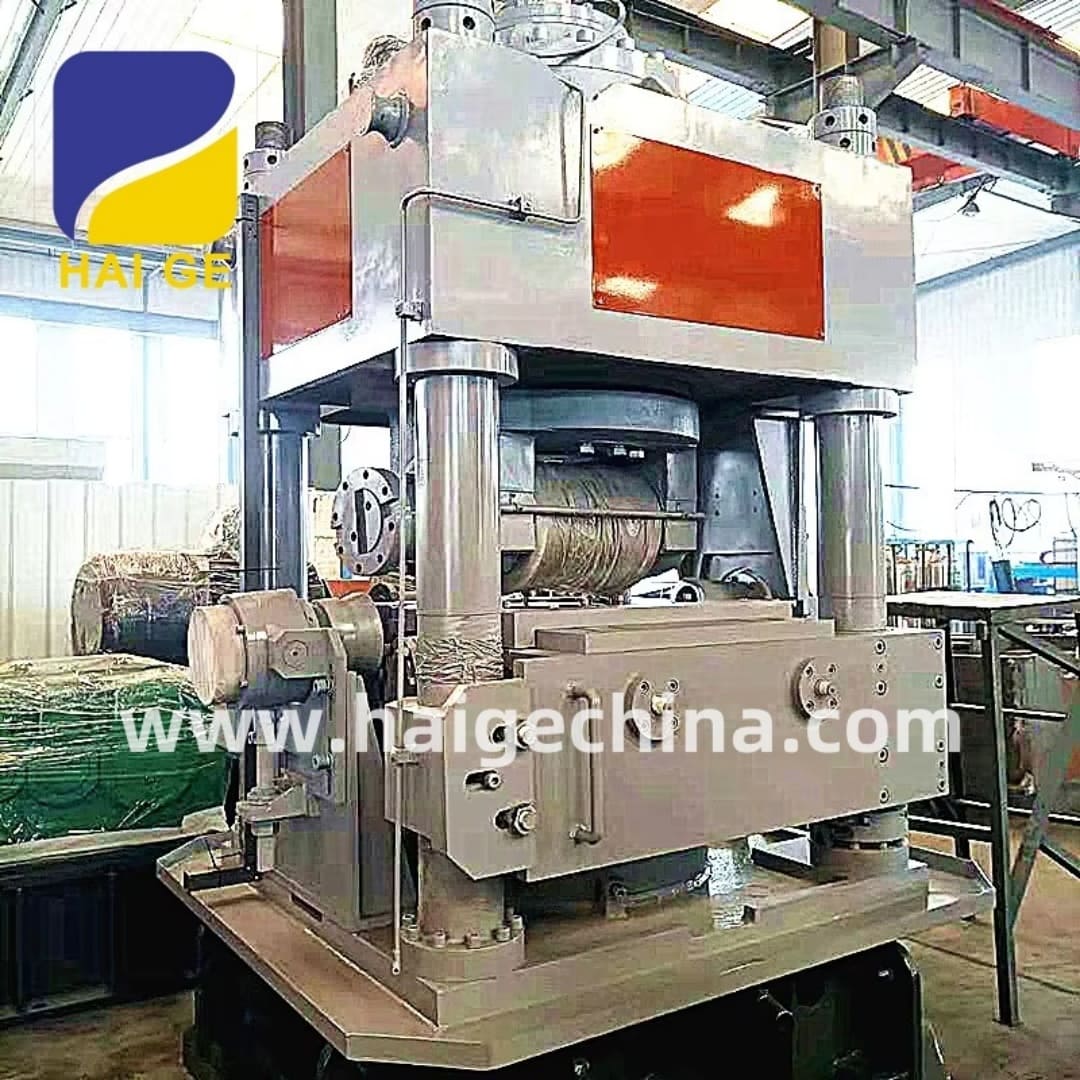

JY60Z Concave and convex roller linear straightening machine

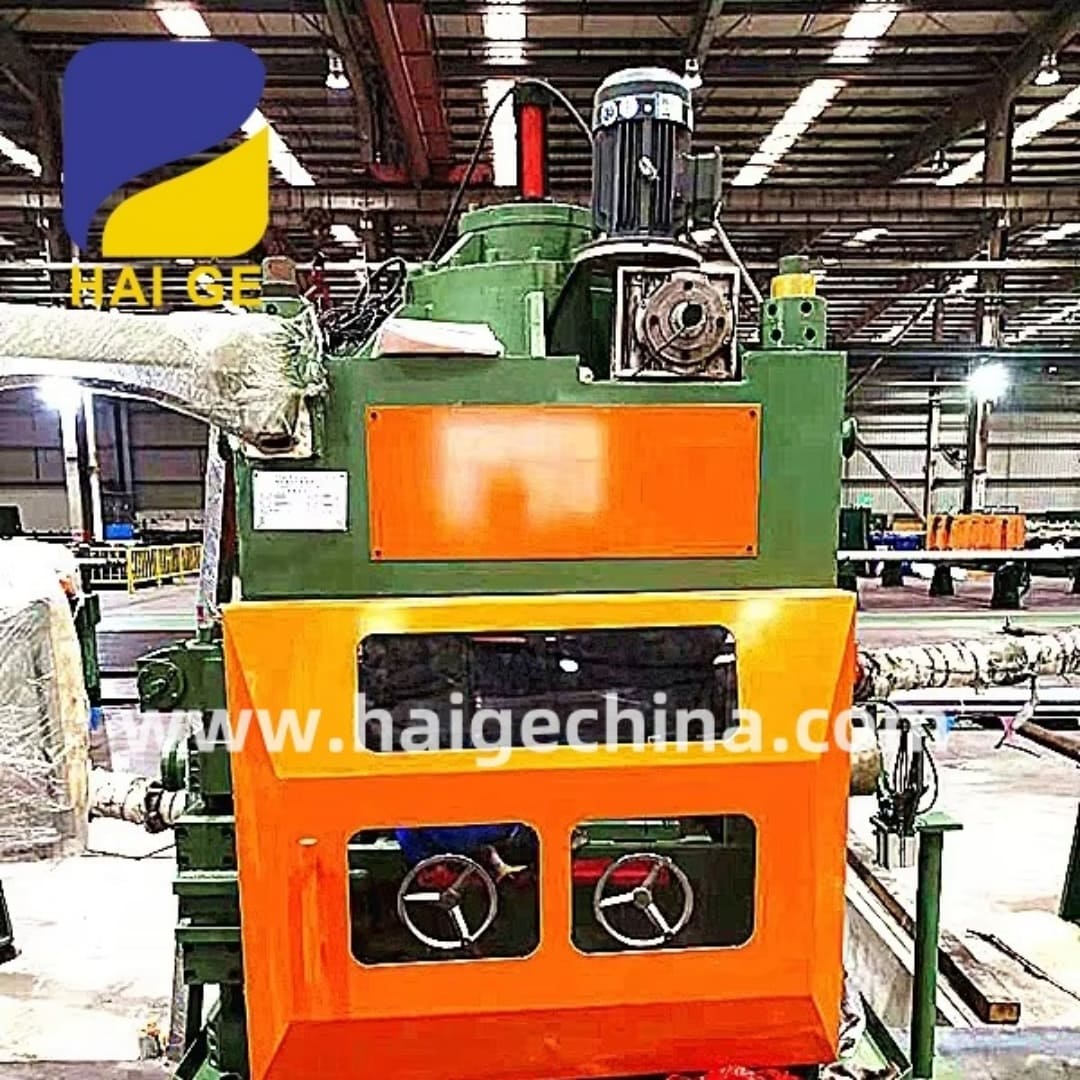

JY60Z Prestressed straightening machine

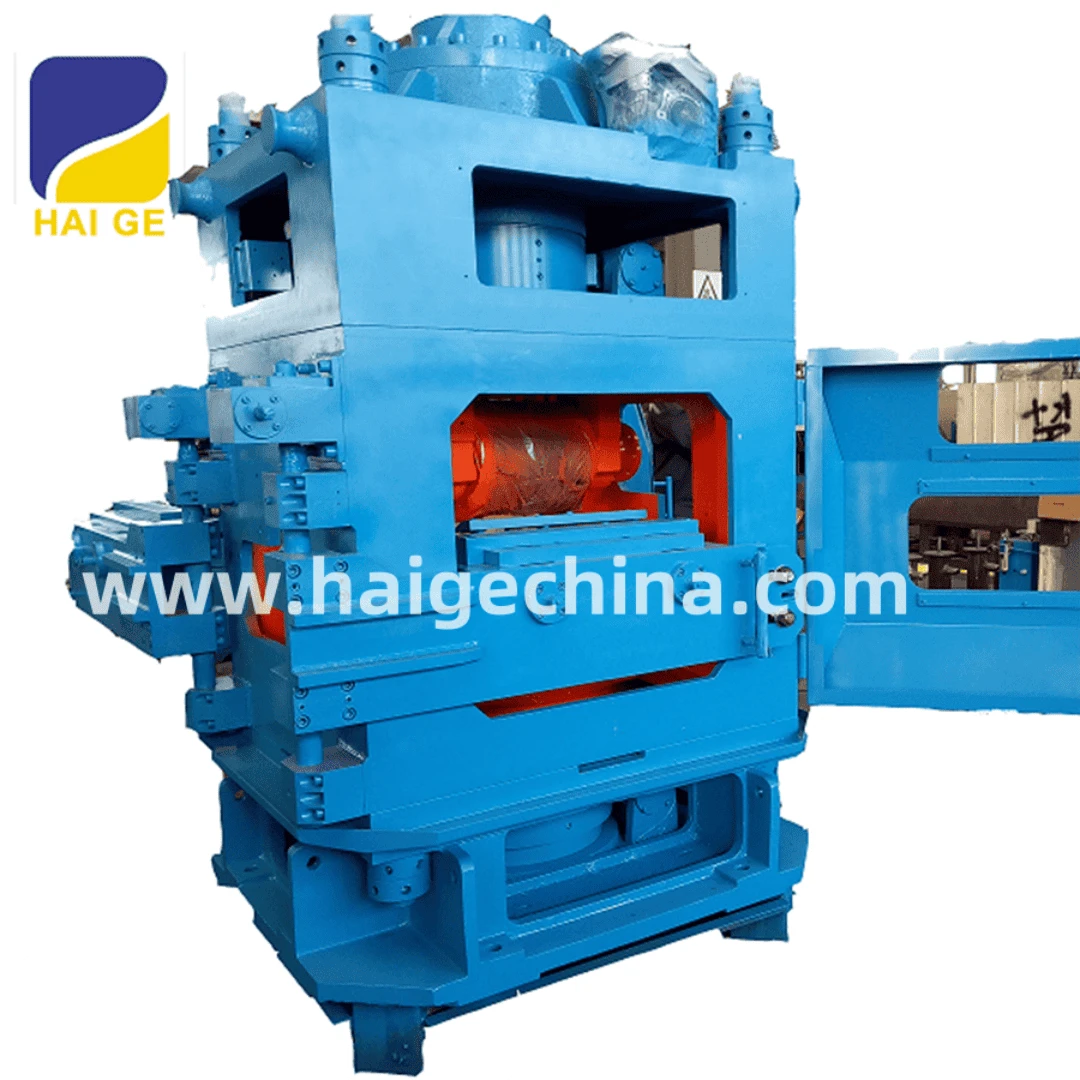

JY60Z
