Machine Introduction
ultrasonic and eddy current inspection for profile steel rod .
The equipment can meet the ultrasonic and eddy current inspection requirements Ф30~70 mm diameter of steel rod. The overall design basis and scheme conform to relevant international standards, national standards and m inisterial standards. The equipment structure is reasonable, the performance is safe and reliable, the operation is convenient.
Main technical parameters
Basis for design of flaw detection equipment
1. conditions of steel bars to be inspected
(1)Rod diameter :Ф30~70 mm.
(2)Length of bars :4~6 m;
(3)Bar material: bearing steel, alloy steel, spring steel, carbon structural steel.
(4) Surface condition: after peeling and polishing, Ra<3.2.
(5) Curvature :< 2‰.
(6) End state: flat end
(7) Bar temperature: normal temperature
2. Common Utilities Conditions
(1)Power supply: AC220V±10%,50Hz±1Hz,5kVA
AC380V±10%,50Hz±1Hz,21kVA
(2)Supply compressed air: pressure 0.4~0.6 MPa, using 6-pipe transmission, maximum consumption of 5 m3/h .
(3) Water supply: running water, with a maximum consumption of 5 m3/ h, optional coupled water recycling function.
(4) Ground wire: at least two separate ground wires with resistance <2.0Ω. to ground
Note: the above media and the requirements of the point of use will be given in detail in the foundation drawing and information provided by seller after signing of the contract.
3. Machine Composition and descriptions
3.1. Composition
Main machine 1set
Loading rack (table) or transition rack 1set
Aligning table (optional) 1set
Loading channel 1set
Input pinch device 1set
Output extract device 1set
unloading channel 1set
Collecting device 1set
Cooling & lubrication system 1set
Electrical system 1set

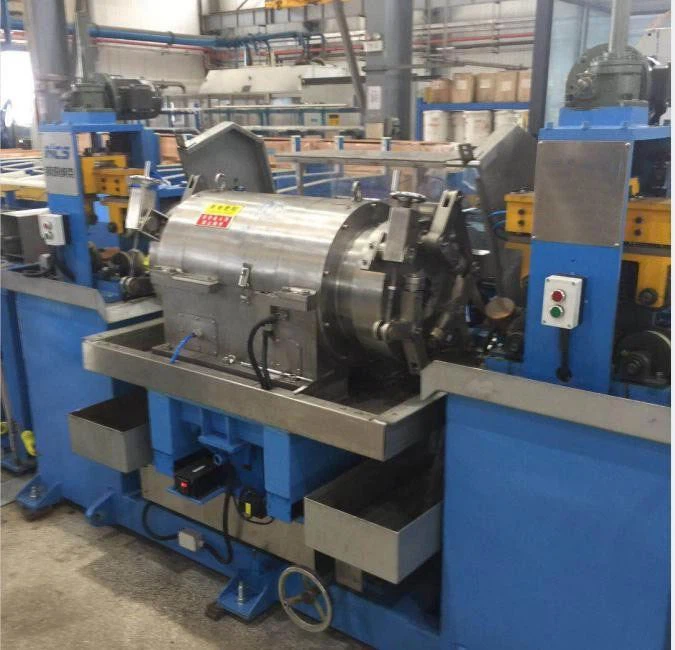

Product display:
