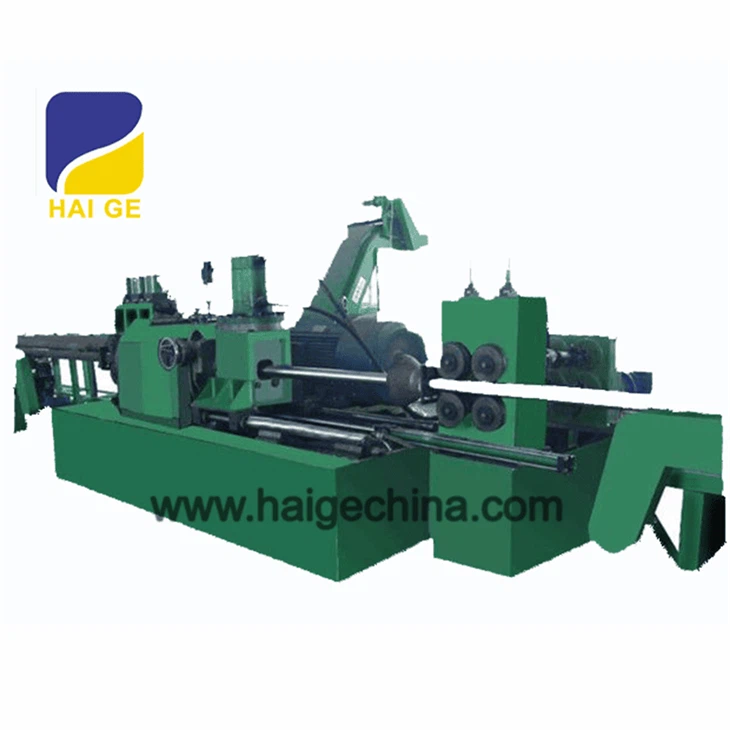

WXC100YCASEMIAUTOMATIC TYPE Centerless Lathe
WXC100YCASEMIAUTOMATIC TYPE Centerless Lathe

WXC100YCASEMIAUTOMATIC TYPE Centerless Lathe

The WXC series of center-less lathe and JY series of straightening machines are high -level new equipment with independent intellectual property rights on the basis of absorbing and digesting foreign advanced technology, making adventurous innovation, and research&development take into consideration of actual situation of domestic companies. Our technology reaches the domestic advanced level in reliability and quality while keeps a relatively lower price, with its efficiency more several times than the conventional process. Our products are suitable to process different kinds of metal material, for instance, black metal material such as structural steel, alloy steel, spring steel, bearing steel,tool steel, copper and copper alloy, aluminum and aluminum alloy, magnesium alloy, titanium and titanium alloy and other non-ferrous metal materials. WXC series of centerless lathe is high-efficient specialized lathe to make a rough or fine machining to the surface of bar material such as slender shaft and other bars. It is able to not only get rid of the imperfection on the bar surface , de-carburized layer, crack etc, but also to guarantee relatively high accuracy. It is especially suitable to process extra long bar and bar with large machining allowance.
Send Inquiry

product-974-382



Properties of the machine

The properties of the WXC100y machine are: strong practicability, stable machining process, fast speed, high efficiency and good surface quality of finished product. The machine line is semi automatic, Due to the increase of Air and oil lubrication device, the bearing life is extended by 3-6 times, and the material feeding speed can reach 3.5m/min.

Transfer box and cardan shaft drive is more reliable. Extracting trolley structure is adopted in extracting process to avoid the crushing injury of material discharge.

-1

Model

WXC100CA

Material

Diameter Range(mm)

Φ26100X2200~12000

Yield Strength σb(Mpa)

1100

Surface Hardness

HB320

Original Curvature FEFEFEFEFCCCCCCIFJEICurvature(mm/m)

1.5

Diameter Tolerance

    According to GB 702-88, 2 group

Roundness

≤50% of the diameter tolerance

Surface Roughness(Ra)

≤2550mm

After Peeling

Diameter Range(mm)

Φ2598

Diameter Cutting Depth(mm)

0.35~1.50

Diameter Tolerance

≤IT10

Surface Hardness(Ra)

≤6.3μm

Curvature(mm/m)

The same as material

Roundness

0.03

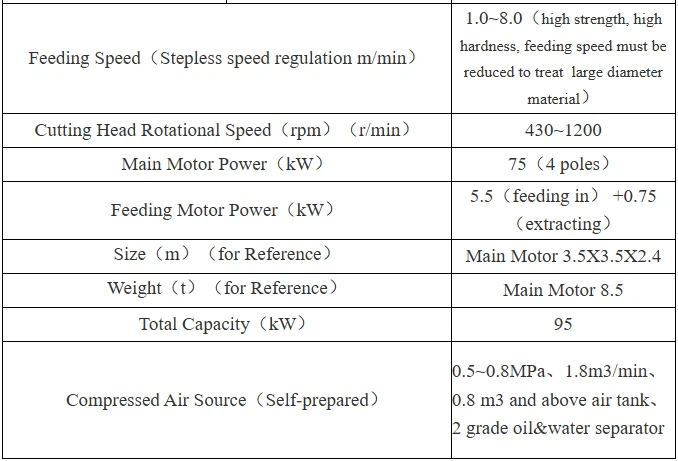

20250429164817

Equipment Composition

Main Motor                                                      1nos

Cutting Fluid Circulation Cooling System      1set

Chip Conveyor                                                 1set

Hydraulic System                                             1set

Electrical System                                              1set

Feeding Rack, Feeding Roller                          1set

Unloading Roller, Collecting Groove               1set
